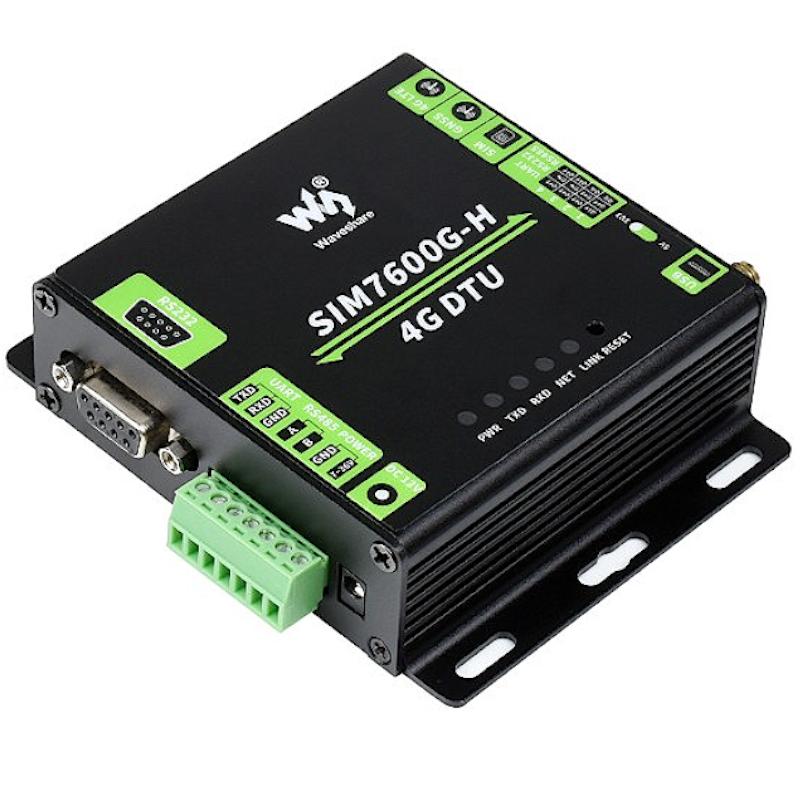

Industrial Grade SIM7600G-H 4G DTU, USB UART/RS232/RS485 Multi Interfaces Communication, LTE Global Band Support

: COM06022
€98.50
Tax included

The Waveshare's SIM7600G-H 4G DTU module with multi interfaces for communication supports 4G/3G/2G networks in global frequency bands and GPS, Beidou, Glonass, GALILEO, QZSS, LBS base station positioning. This module works for wide range of power supply voltage 7~36V.

If you want to know more about this product, please check the Wiki Page.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Supports communication between USB / serial port (UART/RS232/RS485) and 4G network, supports GNSS positioning, compatible with OS like Windows/Linux.
An ideal choice for fields like Raspberry Pi project, industrial control, industrial data collection, and other IoT applications that require 4G network connection.




Features At A Glance

  1. 4G DTU development kit designed for industrial applications, allows direct integration or secondary development

  2. Based on SIM7600G-H communication module, supports global coverage of 4G/3G/2G network

  3. Supports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning

  4. USB to 4G communication, UART/RS232/RS485 to 4G communication

  5. 7 ~ 36 V wide range power supply, ideal for industrial applications

  6. Onboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception

  7. Multi protection circuits, such as ESD protection, anti-surge, stable and safe communication performance

  8. Baudrate: 300bps ~ 4Mbps (115200bps by default)

  9. AT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)

  10. Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant



Specifications

FREQUENCY BAND

4G

LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41

3G

UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19

2G

GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz

GNSS

GPS, Beidou, GLONASS, GALILEO, QZSS

Applicable regions

Global support

DATA RATE

4G (LTE Cat-4)

150Mbps(DL) / 50Mbps(UL)

3G (HSPA+)

42Mbps(DL) / 5.76Mbps(UL)

2G (EDGE)

236.8Kbps(DL) / 236.8Kbps(UL)

2G (GPRS)

85.6Kbps(DL) / 85.6Kbps(UL)

SOFTWARE FEATURES

Communication protocol

TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
(controlled via AT commands, with module Open Linux SDK for secondary development)

OS support

Windows/Linux etc.

HARDWARE DESCRIPTION

Serial port

RS232:
connector: DB9 female
protection: TVS protection, anti-surge, ESD protection

RS485:
connector: screw terminals (A, B)
protection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)

TTL(UART):
operating voltage: 3.3V or 5V
connector: screw terminals (TXD, RXD, GND)

Serial port baudrate

supports 300bps ~ 921600bps, 115200bps by default

USB port

operating voltage: 5V
connector: Micro USB
protection: ESD protection diode
usage: parameter configuration, dial-up, firmware upgrade

Power input

connector: 7~36V screw terminals or DC 12V jack
protection: Schottky diode protection, reverse-proof

Hardware protection

embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case

Operating voltage

7 ~ 36V DC

Operating current

idle: 10~30mA @12V

transmit: 80~450mA @12V (depending on the network condition)

Indicator

PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (user-defined)

Button

reset button

SIM card

standard SIM card (1.8V / 3V)

Antenna connector

MAIN LTE, AUX LTE, GNSS

Operating temperature

-40℃ ~ 80℃


Global Band 4G/3G/2G Support




Windows/Linux Support

Connect To The Host Via USB, Install Driver, The High Speed 4G Connection Will Be Ready To Use


GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station




Cloud Communication

Supports USB/UART Communication Interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS Communication Protocols




Secondary Development Support

The Module Comes With SIMCom AT Firmware By Default,
While Open Linux SDK Is Also Available For Developing Your Own Software Function




Multiple Antennas

High Gain LTE MAIN Antenna: Magnetic Base, Waterproof, Supports Outdoor Usage Through Extension Cable
High Gain LTE AUX Antenna: For Signal Enchantment, Speeding Up The Data Rate
GPS Antenna: 28±2dB Gain, IP65~IP67 Waterproof



Resources Introduction



Indicators And Button

Monitoring The Connection And Signal Status In Real Time

  1. PWR: lights up red when power-on
  2. TXD: blinking blue when transmitting data
  3. RXD: blinking blue when receiving data
  4. NET: blinking green when network connection is established
  5. LINK: a user-defined LED
  6. RESET: reset button



Outline Dimensions


Resources & Services


Wiki: SIM7600G-H_4G_DTU



Package Content

  1. SIM7600G-H 4G DTU main unit x1

  2. High gain LTE MAIN antenna (~ 3m) x1

  3. High gain LTE AUX antenna x1

  4. GPS antenna x1

  5. Serial cable male to female (~ 1.5m) x1

  6. USB-A to micro-B cable (~ 1.2m) x1

  7. OPTIONS 12V 1.0A power adapter x1


Description

Supports communication between USB / serial port (UART/RS232/RS485) and 4G network, supports GNSS positioning, compatible with OS like Windows/Linux.
An ideal choice for fields like Raspberry Pi project, industrial control, industrial data collection, and other IoT applications that require 4G network connection.




Features At A Glance

  1. 4G DTU development kit designed for industrial applications, allows direct integration or secondary development

  2. Based on SIM7600G-H communication module, supports global coverage of 4G/3G/2G network

  3. Supports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning

  4. USB to 4G communication, UART/RS232/RS485 to 4G communication

  5. 7 ~ 36 V wide range power supply, ideal for industrial applications

  6. Onboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception

  7. Multi protection circuits, such as ESD protection, anti-surge, stable and safe communication performance

  8. Baudrate: 300bps ~ 4Mbps (115200bps by default)

  9. AT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)

  10. Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant



Specifications

FREQUENCY BAND

4G

LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41

3G

UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19

2G

GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz

GNSS

GPS, Beidou, GLONASS, GALILEO, QZSS

Applicable regions

Global support

DATA RATE

4G (LTE Cat-4)

150Mbps(DL) / 50Mbps(UL)

3G (HSPA+)

42Mbps(DL) / 5.76Mbps(UL)

2G (EDGE)

236.8Kbps(DL) / 236.8Kbps(UL)

2G (GPRS)

85.6Kbps(DL) / 85.6Kbps(UL)

SOFTWARE FEATURES

Communication protocol

TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
(controlled via AT commands, with module Open Linux SDK for secondary development)

OS support

Windows/Linux etc.

HARDWARE DESCRIPTION

Serial port

RS232:
connector: DB9 female
protection: TVS protection, anti-surge, ESD protection

RS485:
connector: screw terminals (A, B)
protection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)

TTL(UART):
operating voltage: 3.3V or 5V
connector: screw terminals (TXD, RXD, GND)

Serial port baudrate

supports 300bps ~ 921600bps, 115200bps by default

USB port

operating voltage: 5V
connector: Micro USB
protection: ESD protection diode
usage: parameter configuration, dial-up, firmware upgrade

Power input

connector: 7~36V screw terminals or DC 12V jack
protection: Schottky diode protection, reverse-proof

Hardware protection

embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case

Operating voltage

7 ~ 36V DC

Operating current

idle: 10~30mA @12V

transmit: 80~450mA @12V (depending on the network condition)

Indicator

PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (user-defined)

Button

reset button

SIM card

standard SIM card (1.8V / 3V)

Antenna connector

MAIN LTE, AUX LTE, GNSS

Operating temperature

-40℃ ~ 80℃


Global Band 4G/3G/2G Support




Windows/Linux Support

Connect To The Host Via USB, Install Driver, The High Speed 4G Connection Will Be Ready To Use


GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station




Cloud Communication

Supports USB/UART Communication Interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS Communication Protocols




Secondary Development Support

The Module Comes With SIMCom AT Firmware By Default,
While Open Linux SDK Is Also Available For Developing Your Own Software Function




Multiple Antennas

High Gain LTE MAIN Antenna: Magnetic Base, Waterproof, Supports Outdoor Usage Through Extension Cable
High Gain LTE AUX Antenna: For Signal Enchantment, Speeding Up The Data Rate
GPS Antenna: 28±2dB Gain, IP65~IP67 Waterproof



Resources Introduction



Indicators And Button

Monitoring The Connection And Signal Status In Real Time

  1. PWR: lights up red when power-on
  2. TXD: blinking blue when transmitting data
  3. RXD: blinking blue when receiving data
  4. NET: blinking green when network connection is established
  5. LINK: a user-defined LED
  6. RESET: reset button



Outline Dimensions


Resources & Services


Wiki: SIM7600G-H_4G_DTU



Package Content

  1. SIM7600G-H 4G DTU main unit x1

  2. High gain LTE MAIN antenna (~ 3m) x1

  3. High gain LTE AUX antenna x1

  4. GPS antenna x1

  5. Serial cable male to female (~ 1.5m) x1

  6. USB-A to micro-B cable (~ 1.2m) x1

  7. OPTIONS 12V 1.0A power adapter x1

Features At A Glance

  1. 4G DTU development kit designed for industrial applications, allows direct integration or secondary development

  2. Based on SIM7600G-H communication module, supports global coverage of 4G/3G/2G network

  3. Supports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning

  4. USB to 4G communication, UART/RS232/RS485 to 4G communication

  5. 7 ~ 36 V wide range power supply, ideal for industrial applications

  6. Onboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception

  7. Multi protection circuits, such as ESD protection, anti-surge, stable and safe communication performance

  8. Baudrate: 300bps ~ 4Mbps (115200bps by default)

  9. AT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)

  10. Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant



Specifications

FREQUENCY BAND

4G

LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41

3G

UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19

2G

GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz

GNSS

GPS, Beidou, GLONASS, GALILEO, QZSS

Applicable regions

Global support

DATA RATE

4G (LTE Cat-4)

150Mbps(DL) / 50Mbps(UL)

3G (HSPA+)

42Mbps(DL) / 5.76Mbps(UL)

2G (EDGE)

236.8Kbps(DL) / 236.8Kbps(UL)

2G (GPRS)

85.6Kbps(DL) / 85.6Kbps(UL)

SOFTWARE FEATURES

Communication protocol

TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
(controlled via AT commands, with module Open Linux SDK for secondary development)

OS support

Windows/Linux etc.

HARDWARE DESCRIPTION

Serial port

RS232:
connector: DB9 female
protection: TVS protection, anti-surge, ESD protection

RS485:
connector: screw terminals (A, B)
protection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)

TTL(UART):
operating voltage: 3.3V or 5V
connector: screw terminals (TXD, RXD, GND)

Serial port baudrate

supports 300bps ~ 921600bps, 115200bps by default

USB port

operating voltage: 5V
connector: Micro USB
protection: ESD protection diode
usage: parameter configuration, dial-up, firmware upgrade

Power input

connector: 7~36V screw terminals or DC 12V jack
protection: Schottky diode protection, reverse-proof

Hardware protection

embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case

Operating voltage

7 ~ 36V DC

Operating current

idle: 10~30mA @12V

transmit: 80~450mA @12V (depending on the network condition)

Indicator

PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (user-defined)

Button

reset button

SIM card

standard SIM card (1.8V / 3V)

Antenna connector

MAIN LTE, AUX LTE, GNSS

Operating temperature

-40℃ ~ 80℃


Global Band 4G/3G/2G Support




Windows/Linux Support

Connect To The Host Via USB, Install Driver, The High Speed 4G Connection Will Be Ready To Use


GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station




Cloud Communication

Supports USB/UART Communication Interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS Communication Protocols




Secondary Development Support

The Module Comes With SIMCom AT Firmware By Default,
While Open Linux SDK Is Also Available For Developing Your Own Software Function




Multiple Antennas

High Gain LTE MAIN Antenna: Magnetic Base, Waterproof, Supports Outdoor Usage Through Extension Cable
High Gain LTE AUX Antenna: For Signal Enchantment, Speeding Up The Data Rate
GPS Antenna: 28±2dB Gain, IP65~IP67 Waterproof



Resources Introduction



Indicators And Button

Monitoring The Connection And Signal Status In Real Time

  1. PWR: lights up red when power-on
  2. TXD: blinking blue when transmitting data
  3. RXD: blinking blue when receiving data
  4. NET: blinking green when network connection is established
  5. LINK: a user-defined LED
  6. RESET: reset button



Outline Dimensions


Resources & Services


Wiki: SIM7600G-H_4G_DTU



Package Content

  1. SIM7600G-H 4G DTU main unit x1

  2. High gain LTE MAIN antenna (~ 3m) x1

  3. High gain LTE AUX antenna x1

  4. GPS antenna x1

  5. Serial cable male to female (~ 1.5m) x1

  6. USB-A to micro-B cable (~ 1.2m) x1

  7. OPTIONS 12V 1.0A power adapter x1
