SIM7600G-H 4G DONGLE, GNSS Positioning, Global Band Support

: COM06017
€62.85
Tax included

his is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux/Android. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

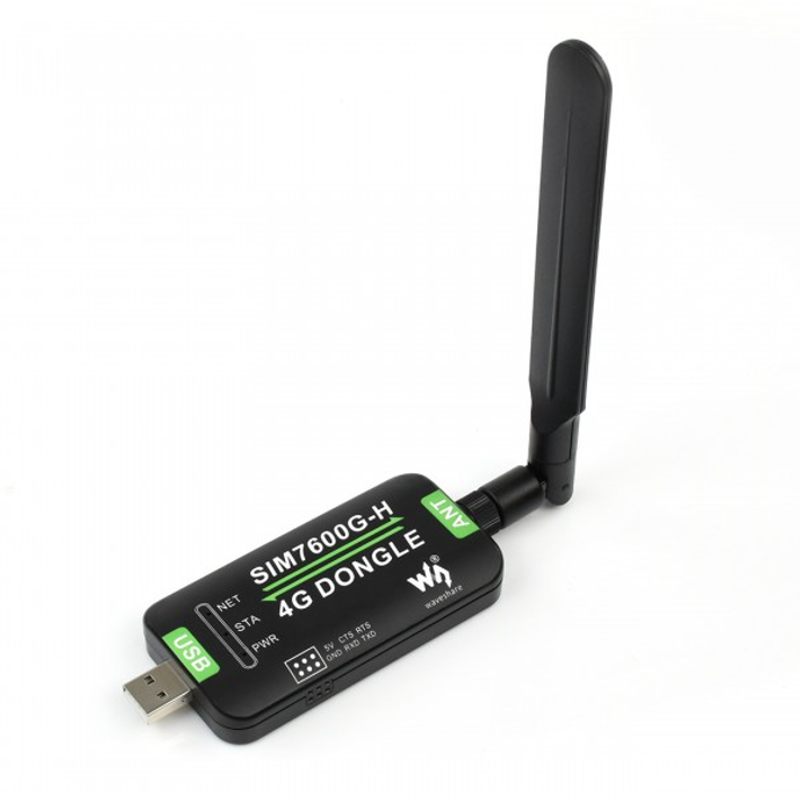

SIM7600G-H 4G DONGLE with antenna, industrial grade 4G communication and GNSS positioning peripheral, global band support

SIM7600G-H 4G DONGLE

This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux/Android. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.


Features at a glance

  1. Supports 2G/3G/4G network connection, global band

  2. Driver provided, for operating systems including Windows/Linux/Android

  3. Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS

  4. Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer

  5. Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32

  6. Onboard GNSS connecting, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)

  7. Nano SIM card slot, supports 1.8V / 3V nano SIM card

  8. 3x LED indicators, easy to monitor the working status

  9. Portable customized enclosure, mini size, nice looking

  10. Baudrate support: 300bps ~ 4Mbps (115200bps by default)

  11. Baudrate auto-negotiation: 9600bps ~ 115200bps

Specification comparing



SIM7600CE-CNSE

SIM7600G-H

Applicable regions*

China

Global

Band

LTE Cat-4 / LTE Cat-1

LTE-TDD: B38/B39/B40/B41
LTE-FDD: B1/B3/B8

LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/
B13/B18/B19/B20/B25/B26/B28/B66

3G

UMTS/HSDPA/HSPA+: B1/B8
TD-SCDMA: B34/B39

UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19

2G

GSM/GPRS/EDGE: 900/1800MHz

GSM/GPRS/EDGE: 850/900/1800/1900MHz

GNSS

N/A

GPS, BeiDou, Glonass, LBS base station

Data Rate

LTE Cat-4

150Mbps(DL) / 50Mbps(UL)

3G (HSPA+)

42Mbps(DL) / 5.76Mbps(UL)

2G (EDGE)

236.8Kbps(DL) / 236.8Kbps(UL)

2G (GPRS)

85.6Kbps(DL) / 85.6Kbps(UL)

Software Features

Operating system

Windows/Linux/Android

Network protocol

TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS

Dial-up protocol

NDIS/RNDIS/PPP

SMS

Supports MT, MO, CB, Text, PDU

Hardware Description

Communication interface

USB / UART

UART baud rate

300bps ~ 4Mbps (115200bps by default)

Indicator

NET：network indicator

STA：status indicator

PWR：power indicator

SIM card support

Nano SIM card (1.8V / 3V)

Antenna connector

LTE

Power supply

5V

Logic level

3.3V

Outline dimensions

89.20 × 45.26 × 14.62mm

* for bulk purchase, customizing service (like SIM7600CE-T / E-H / A-H etc.) is available to support other regions, please feel free to contact Waveshare team.

Global band support

supports global 2G/3G/4G communication


Multi host support

working with laptop / Raspberry Pi / industrial computer...
up to 150Mbps downlink and 50Mbps uplink*

SIM7600G-H-4G-DONGLE-details-6.jpg SIM7600G-H-4G-DONGLE-details-7.jpg

* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.

Multi system support

supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use


Cloud Communication

supports USB/UART communication interfaces
supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols


GNSS positioning

Supports GPS, BeiDou, Glonass, LBS base station positioning

SIM7600G-H-4G-DONGLE-details-11.jpg SIM7600G-H-4G-DONGLE-details-13.jpg

The GNSS antenna is NOT included.

Industrial grade 4G solution

Integrates SIM7600G-H module, industrial grade design, stable connection, more durable


Flexible antenna

flexible structure antenna design, allows multidimensional rotation for better connection


4G SIM card slot

onboard nano SIM card slot with sliding cover, easy to use


Three LED indicators

easy to check the operating status, convenient for programming/debugging


UART pinouts

5V

5V DC input

GND

power ground

TXD

data transmitting

RXD

data receiving

CTS

hardware flow control, clear to send, NC if not used

RTS

hardware flow control, request to send, NC if not used

Application examples


Outline Dimensions


Resources & Services

Wiki: www.waveshare.com/wiki/SIM7600G-H_4G_DONGLE



Package Content

Weight: 0.098 kg

  1. SIM7600G-H 4G DONGLE x1
  2. LTE Antenna x1
  3. USB extension cable x1
  4. 6PIN jumper wire x1
  5. Screws tool kit x1
1SIM7600G-H-4G-DONGLE-4_220.jpg 2LTE-Antenna2_93.jpg 3USB-Cable-type-A-plug-to-type-A-receptacle-20cm_93.jpg46-pin_scatter_cable.jpg5screws-tool-kit_93.jpg
