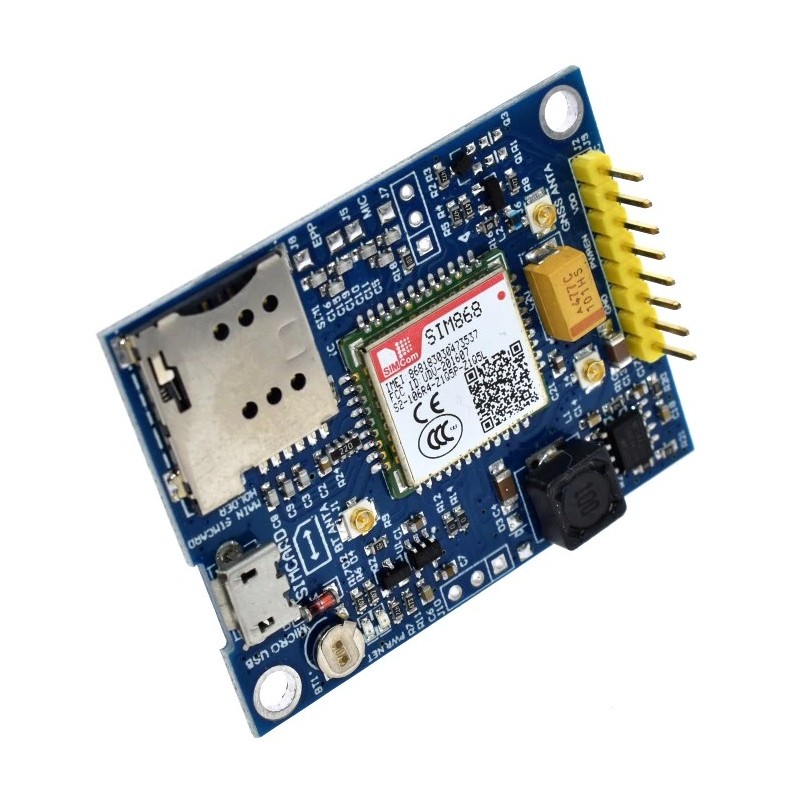

GSM GPRS + GPS GNSS SIM868 Module
SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS technology for satellite navigation.
The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
More information about the SIM868 on the following links:
Datasheet SIM868
https://simcom.ee/documents/?dir=SIM868
https://simcom.ee/documents/?dir=SIM800x
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS technology for satellite navigation.
The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
General features
- Quad-band 850/900/1800/1900MHz
- GPRS multi-slot class 12/10
- GPRS mobile station class B
- Compliant to GSM phase 2/2+
- Class 4 (2 W @ 850/900MHz)
- Class 1 (1 W @ 1800/1900MHz)
- Dimensions: 17.6*15.7*2.3mm
- Weight: 1.5g
- Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
- Supply voltage range 5~18Vdc
- Low power consumption
- Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
- GPRS class 12: max. 85.6 kbps (downlink/uplink)
- PBCCH support
- Coding schemes CS 1, 2, 3, 4
- PPP-stack
- USSD
Specifications for SMS via GSM/GPRS
- Point to point MO and MT
- SMS cell broadcast
- Text and PDU mode
Software features
- 0710 MUX protocol
- Embedded TCP/UDP protocol
- FTP/HTTP
- MMS
- POP3/SMTP
- DTMF
- Jamming Detection
- Audio Record
- SSL
Specification for GPS
- Receiver type
- 22 tracking /66 acquisition -channel
- GPS L1 C/A code
- Sensitivity
- Tracking: -166 dBm
- Cold starts : -148 dBm
- Time-To-First-Fix
- Cold starts: 29s (typ.)
- Hot starts: <1s
- Warm starts: 22s
- Accuracy
- Horizontal position : <2.5m CEP
Interfaces
- 77 SMT pins including:
- SIM Card Interfaces
- SIM card: 3V/ 1.8V
- Analog audio interface
- RTC GNSS backup
- I2C interface
- USB interface
- Serial interface
- SD
- GPIO
- ADC
- GSM Antenna pad
- GNSS Antenna pad
- Bluetooth Antenna pad
