GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi

: COM06011
€29.95
Tax included

This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth.

It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

General

  • Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
  • Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
  • Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
  • Bluetooth 3.0, supports data transferring through Bluetooth
  • Onboard USB TO UART converter CP2102 for UART debugging
  • 6x LEDs for indicating the module working status
  • SIM card slot for 1.8V/3V SIM card
  • RTC with backup battery holder
  • Baudrate auto detection (1200bps ~115200bps)
  • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: GSM 11.14 Release 99
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

GSM/GPRS

  • Band
    • GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
    • Quad-band auto search
    • Compliant to GSM phase 2/2+
  • Emitting power
    • Class 4 (2W @ GSM 850/EGSM 900 MHz)
    • Class 1 (1W @ DCS 1800/PCS 1900 MHz)
  • GPRS connectivity
    • GPRS multi-slot class 12 (default)
    • GPRS multi-slot class 1~12 (configurable)
  • GPRS data feature
    • Downlink speed: max 85.6kbps
    • Uplink speed: max 85.6kbps
    • Coding schemes: CS-1\CS-2\CS-3\CS-4
    • Supports PAP (Password Authentication Protocol) for PPP connection
    • Supports PBCCH
    • Supports USSD
  • SMS
    • Supports: MT/MO/CB/Text/PDU mode
    • SMS storage: SIM card
  • Audio
    • Voice encode/decode mode: Half Rate\Full Rate\Enhanced Full Rate\Adaptive muti rate
    • Supports echo cancellation
    • Supports noise reduction

GNSS

  • Receiver type
    • 33 tracking channels
    • 99 acquisition channels
    • GPS L1 C/A code
  • Sensitivity
    • Tracking: -165 dBm
    • Cold starts : -148 dBm
  • Time-To-First-Fix
    • Cold starts : 28s (typ.)
    • Hot starts : < 1s
    • Warm starts: 26s
  • Accuracy
    • Horizontal position : <2.5m CEP

Bluetooth

  • Integrates AT commands
  • Compliant to Bluetooth specification3.0 + EDR
  • Supports SPP, OPP, HFP/HSP, etc.

Misc

  • Operating voltage: 5V
  • Operating temperature: -40°C ~ 85°C
  • Storage temperature: -45°C ~ 90°C
  • Dimensions: 30.2mm x 65mm

What's on Board

Phone Shield SIM808 on board resource

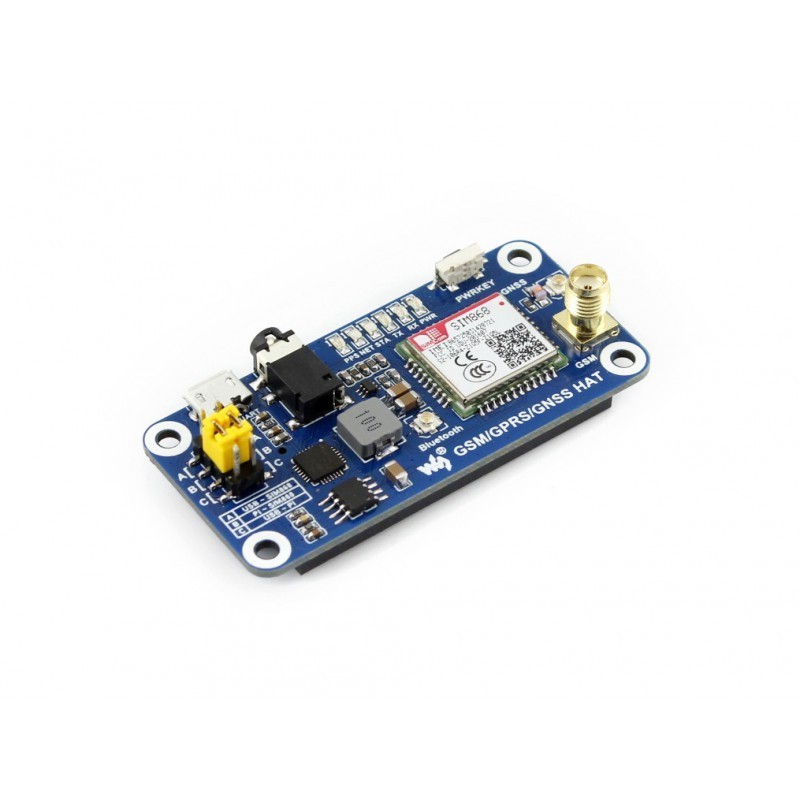

  1. SIM868 module
  2. ZMM5V1: regulator diode
  3. SMF05C: TVS diode
  4. CP2102: USB TO UART converter
  5. MP1482: power chip
  6. NDC7002N: voltage level translator
  7. GPS status indicator
  8. NET indicator:
    • flashes fast when the module starts up
    • flashes slowly after GSM register succeed
  9. STA module working status indicator
  10. SIM868 UART Tx/Rx indicator
  11. Power indicator
  12. SIM868 control button: press the button and hold for 1s, to startup/shutdown the SIM868
  13. Raspberry Pi GPIO connector
  14. SIM card slot
  15. USB TO UART interface
  16. 3.5mm earphone/mic jack
  17. GNSS antenna connector
  18. Bluetooth antenna connector
  19. GSM antenna connector
  20. CR1220 battery holder: for RTC backup battery
  21. UART selection switch
    • A: control the SIM868 through USB TO UART
    • B: control the SIM868 through Raspberry Pi
    • C: access Raspberry Pi through USB TO UART
