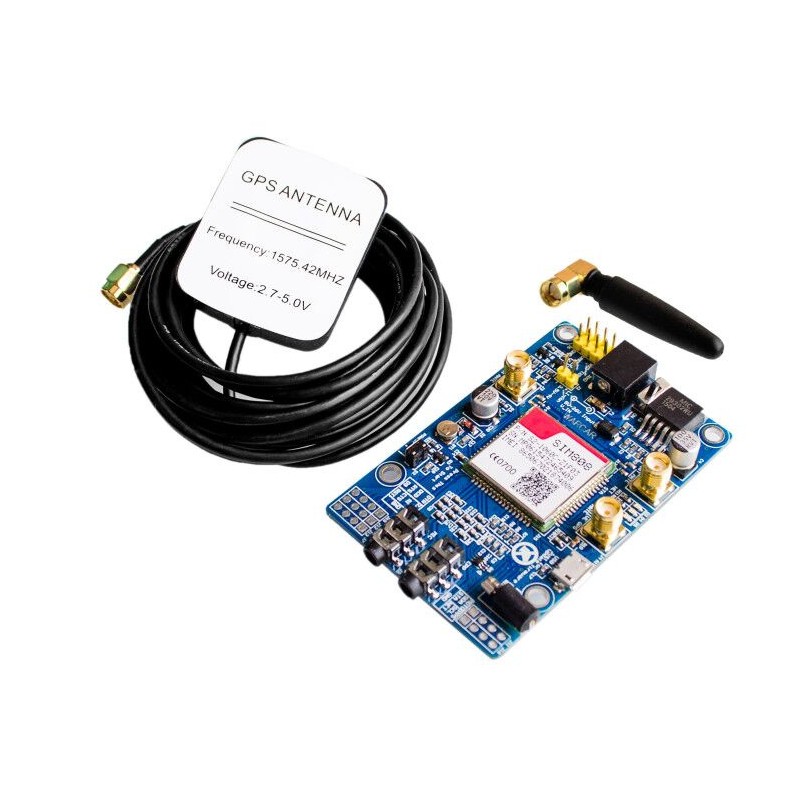

SIM808 STM32.51 GSM/GPRS/GPS Bluetooth Module

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation.

It features ultra-low power consumption in sleep mode and integrated with charging circuit for Li-Ion batteries, that make it get a super long standby time and convenient for projects that use rechargeable Li-Ion battery. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels. Besides, it also supports A-GPS that available for indoor localization.

The module is controlled by AT command via UART and supports 3.3V and 5V logical level.

Specification

Features

• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
• GPRS mobile station class B
• Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supports charging control for Li-Ion battery
• Supports Real Time Clock
• Supply voltage range 3.4V ~ 4.4V
• Integrated GPS/CNSS and supports A-GPS
• Supports 3.0V to 5.0V logic level
• Low power consumption, 1mA in sleep mode
• Supports GPS NMEA protocol
• Standard SIM Card

Electrical Characteristics

Packing list

1* SIM808 GSM/GPRS/GPS Module

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.
