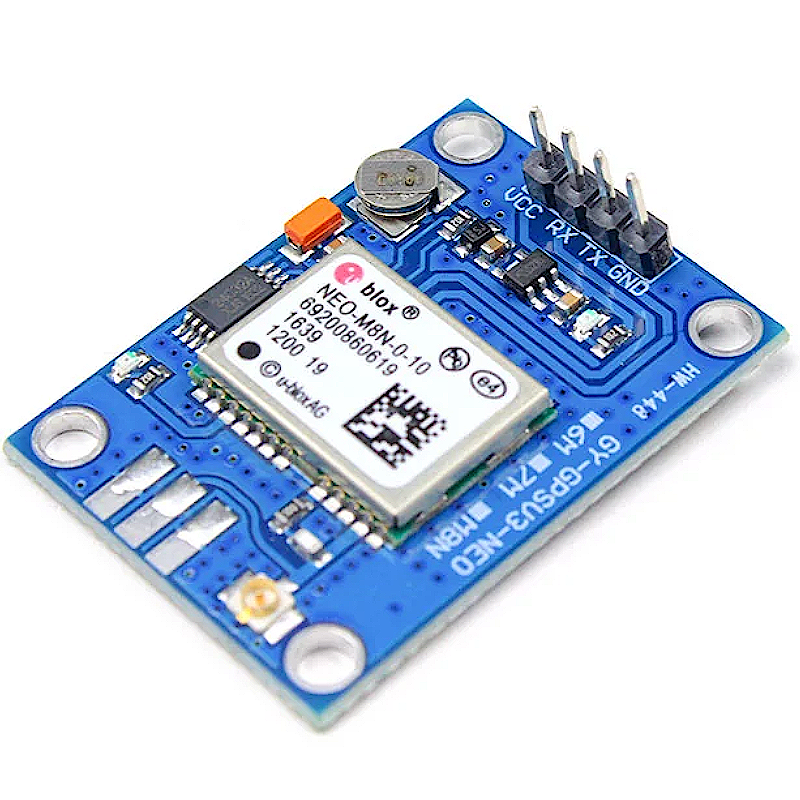

UART GPS NEO-8M W/ CERAMIC ANTENNA

: SEN09008
€18.90
Tax included

The NEO-M8M GPS Module with Ceramic Active Antenna series of concurrent GNSS modules is built on the high performing M8 GNSS engine in the industry proven NEO form factor.

Compatible with UART-capable devices including Arduino, Raspberry Pi, PIC, MSP430, and MSP432.

Power the module and it will automatically acquire satellite signals and a position fix. Once it has a position fixed the module will blink the on-board LED. This LED will continue to blink while the module has a position fix.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.



Ceramic Active Antenna:

  • Connecting cable length: 20mm
  • Size: 25mm*25mm*8.5mm (L*W*H)

 Features:

  • With data backup battery
  • Compatible with various flight controller module
  • Built-in RTC crystal
  • Anti-jamming Active CW detection and removal
  • The ceramic antenna provides a very strong signal

Applications:

  • Industrial applications
  • Automotive applications
  • Animal tracking devices

Features :

  • The ceramic antenna provides a very strong signal
  • With LED indicator lamp
  • The default baud rate: 9600.
  • With data backup battery.
  • LED signal indicator.
  • Compatible with various flight controller module.
  • EEPROM save the configuration parameter data when power-down.
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO
  • Built-in RTC crystal
  • Anti-jamming Active CW detection and removal.
  • Extra onboard SAW bandpass filter
  • Memory Flash
  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger For position, velocity, and time

Specifications:

Model

Ublox NEO-M8N

Receiver Type

72-channel Ublox M8 engine.

Input Supply Voltage (VDC)

3 ~ 5

Main Chip

Ublox NEO-M8N

Sensitivity (dBm)

156
Cold Start (without aiding): -147 dBm

Position Accuracy (Meter)

2
2.5

Acceleration (g)

<4

Navigation Update Rate

up to 18 HZ.

Operating Temperature Range (°C)

-45 to 105

Tracking Sensitivity (dBm)

-161 dBm

Co-Ordinate System

WGS-84

Capture Time

0.1s Average

Avg Cold Start Time (s)

30

Warm Start Time (s)

1

Boot Time

1S

Maximum Altitude (m)

18000

Dimensions (mm) LxWxH

Antenna: 25 x 25 x 9
Module: 26 x 36 x 4

Weight (gm)

17


Package Includes :

  • 1 x Ublox NEO M8N GPS Module.
  • 1 x Ceramic Active Antenna.
SEN09008
