LED Expansion Module - 8 LEDs

: PCO05011
€4.95
Tax included
Quantity
Out-of-Stock


Product Description

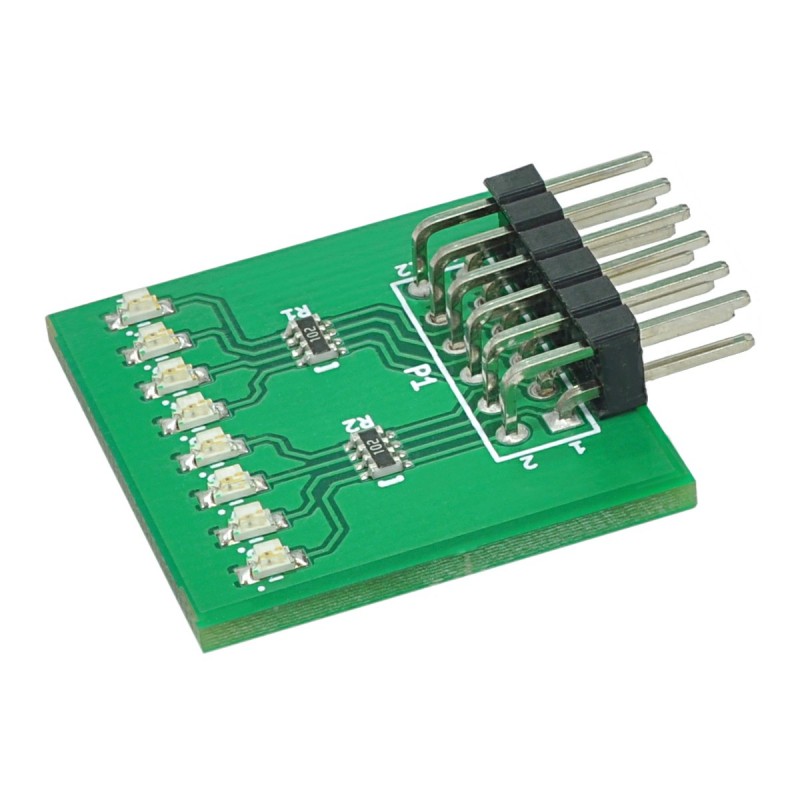

This is a simple expansion module with 8 LEDs for general purpose status indication and other human  machine interface purposes. It can be connected to Numato Lab’s FPGA/Microcontroller boards  featuring a 2x6 pin Expansion connector. This expansion module can be connected to other boards by  using manual wiring. LEDs are connected in common cathode topology. This product is compatible with most of Numato Lab's FPGA boards.

 Applications

  • General purpose status indication
  • Debug data output

 Board features

  • 8 high brightness SMD LEDs
  • 2x6 pin expansion connector
  • Onboard current limiting resistors
  • Common Cathode topology
  • Dimension: 24mm X 26mm

Documents:

PCO05011
