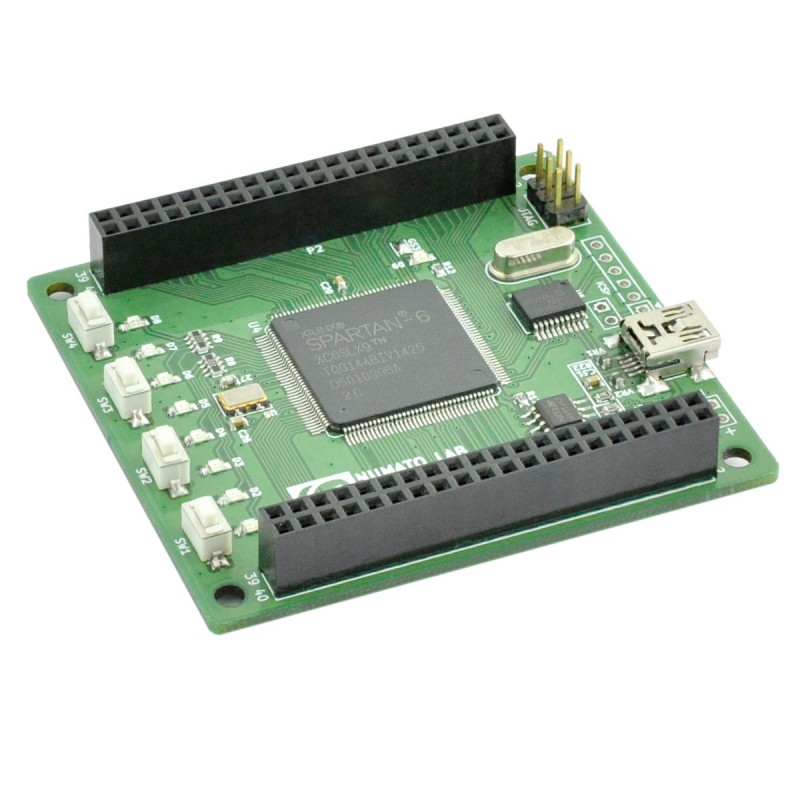

Mimas - Spartan 6 FPGA Development Board
: PCO05019
€63.50
Tax included
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Product Description
Mimas is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA. Mimas is specially designed for experimenting and learning system design with FPGAs. This development board features Xilinx XC6SLX9 TQG144 FPGA with maximum 70 user IOs. The USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. You don’t need a programmer or special downloader cable to download the bit stream to the board.
Applications
- Product Prototype Development
- Signal Processing
- Wired and Wireless Communications
- Educational tool for schools and universities
Board features
- FPGA: Spartan-6 XC6SLX9 in TQG144 package
- Flash memory: 16 Mb SPI flash memory (M25P16)
- 100MHz CMOS oscillator
- USB 2.0 interface for On-board flash programming
- FPGA configuration via JTAG and USB
- 8 LEDs and four switches for user defined purposes
- 70 IOs for user defined purposes
- On-board voltage regulators for single power rail operation
Specifications
Downloads
- Configuration Script (Python)
- Configuration Tool (Windows)
- Expansion modules and Peripherals
- IO Breakout Module For Mimas
- Numato Lab USB CDC Driver
- Sample Binary File
- Schematics And layout(KiCad)
- User Constraints File
- User Manual
Sample Code
Name - Language/Technology - IDE - Hardware Modules Required - Download
- 16x2 LCD Display - Verilog - Xilinx ISE - Download
- Push Button Switch - Verilog - Xilinx ISE - Download
Mimas IO Breakout Module , Push Button Switch Expansion Module
- Seven Segment LED Display - Verilog - Xilinx ISE - Download
Mimas IO Breakout Module , Seven Segment LED Display Expansion Module
- LM4550 AC97 Audio - Verilog - Xilinx ISE - Download
- CS4344 Stereo Audio - Verilog - Xilinx ISE - Download
