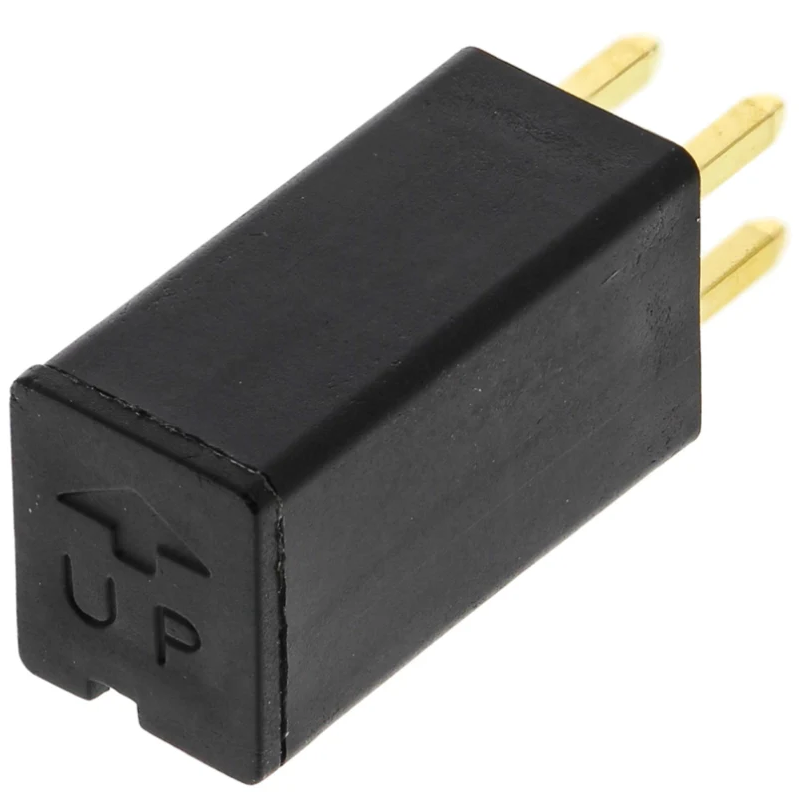

Tilt Switch Sensor Polyamide RBS040100 1~24VDC

The RBS040100 from Comus is a tilt switch with mercury free contacts. These operate when tilted from the horizontal position. The switch movement required to cause contact change is called the differential angle. It is very important when designing a tilt switch to allow for the differential angle and understand that when in the horizontal position the switch contact may be open or closed.

• Maximum switching voltage is 24V
• Maximum switching current is 25mA
• 14.5mm length
• 5mm diameter
• Maximum contact resistance is 5ohm initially
• Operating temperature range from -25° to 70°C
• Glass fibre polyamide, UL94V-0 case material
• Pin termination
• Make angle is 10° below horizontal, break angle is 10° above horizontal and 15°differential angle

Package: Quantity: 1pc/sensor, right angle pin
