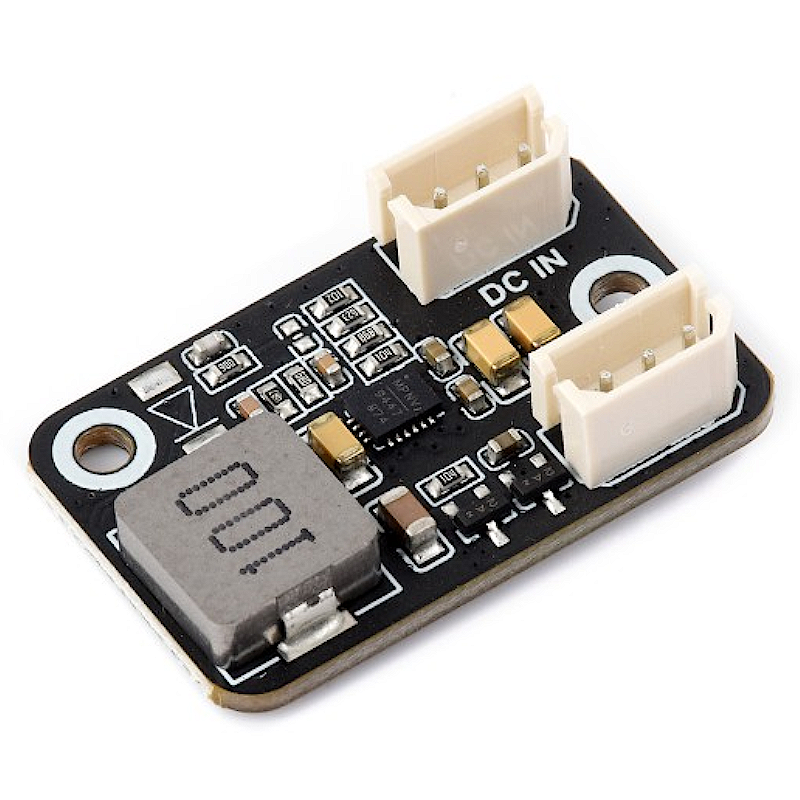

Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck Regulator - Waveshare 27380

: FAL08075
€3.90
Tax included

Design for 7.2V SC series serial bus servo.

If you want to know more about this product, please check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features At A Glance

  1. 7.2V buck regulator, suitable for the servos such as SC15 Servo and SC09 Servo

  2. Mini size, more space-saving, easy to integrate into the projects

  3. 9~36V wide voltage input for more flexible project power selection

  4. Simply connect it in series in the servo circuit to use



Specifications

INPUT VOLTAGE

DC 9~36V

OUTPUT VOLTAGE

DC 7.2V

INTERFACE

SC/ST series servo 5264-3P header

DIMENSIONS

21.50 × 34.00mm

MOUNTING HOLE SIZE

2.70mm

PEAK CURRENT

3A



Application Examples

Working With General Driver for Robots driver board, More Flexible for Project Power Selection, Suitable for Serial Bus Servos Such As SC15 Servo and SC09 Servo

Serial Bus Servo DC 7.2V Buck Adapter, connecting with UPS module, driver board and servo

for reference only, the UPS module, driver board and servo are NOT included.



What's Onboard

Serial Bus Servo DC 7.2V Buck Adapter, onboard resources





Outline dimensions

Serial Bus Servo DC 7.2V Buck Adapter, outline dimensions



Resources & Services


Wiki: www.waveshare.com/wiki/DC_BUCK_Adapter_(7.2V)



Package Content

Weight: 0.01 kg

  1. DC BUCK Adapter (7.2V) x1

  2. 30cm servo cable x1

1DC BUCK Adapter (7.2V)2DC-BUCK-Adapter-7.2V-details-pack-2-93.jpg
FAL08075
