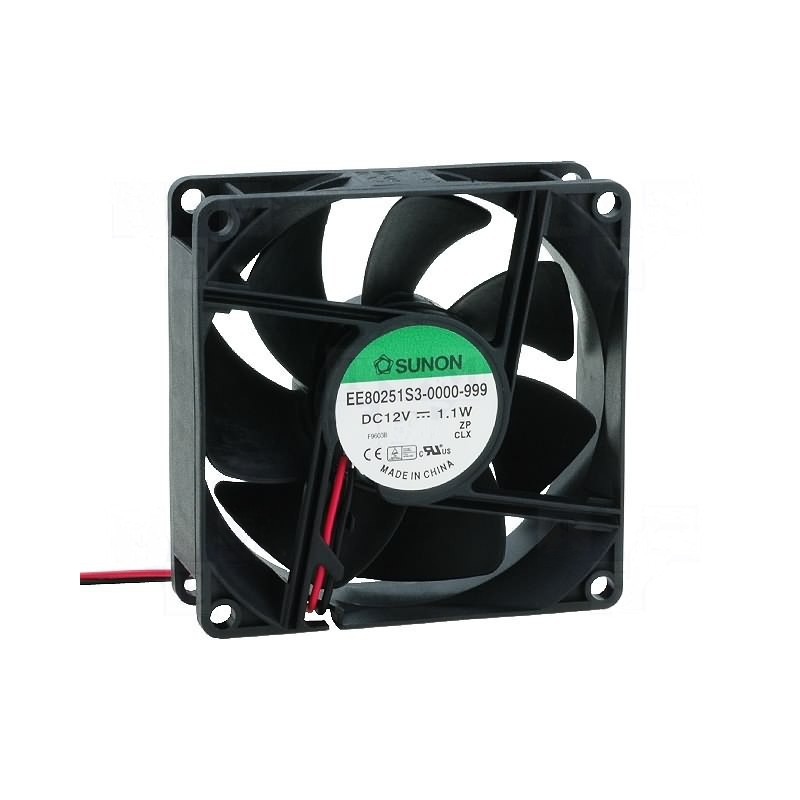

Ventilador 12VDC 80mm
  • Ventilador 12VDC 80mm
  • Ventilador 12VDC 80mm
  • Ventilador 12VDC 80mm

Ventilador 12VDC 80mm

: CEL01021
€3.90
Tax included

FAN 12VDC,80mm, 1.1W,2600rmp,56.1m³/h, 28dBA

Quantity

Specification:

Fan type: DC

Supply voltage: 12V DC

Fan dimensions: 80x80x25mm

Fans efficiency: 56.1m3/h

Noise level: 28dBA

Bearing type: slide bearing

Power consumption: 1.1W

Operating voltage: 4.5...13.8V

Rotational rate/speed: 2600 (±10%)rpm

Weight: 75g

Rated current: 0.09A

Current and power consumption tolerance: ±15%

Min. insulation resistance: 500MΩ

Fan material: thermoplastic

Enclosure material: thermoplastic

Insulation: class E

Operating temperature: -10...70°C

Static pressure: 2.79mm H2O

Leads: 2 leads

Flammability rating: UL94V-0

Fan motor: brushless DC motor

Cable length: 300mm

Wire size: 28AWG

CEL01021
