Bluno Beetle Shield

: ARD03125
€4.70
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

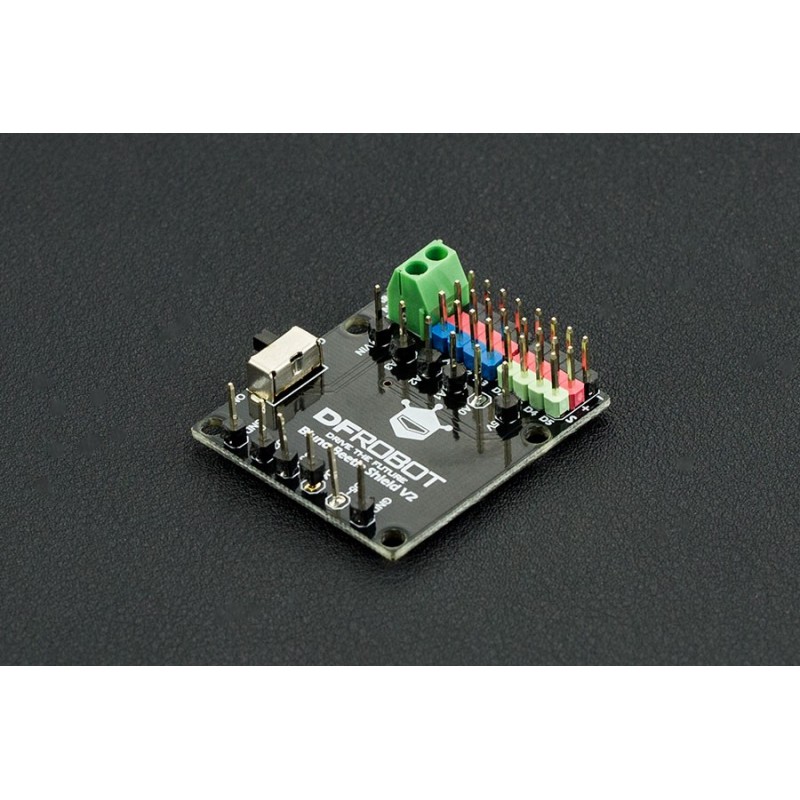

The Bluno Beetle Shield expands the Beetle's single analog and digital I/O pins to the 3 pin "gravity" interface, giving more power and ground connections and making it easier to attach gravity interface modules. It also includes a convenient external power supply and a 5-8v switch to power the board on and off. To use the shield, the Bluno Beetle is stacked on to the shield's I/O pins and then soldered in place.


Bluno Beetle (DFR0339) stacked on Bluno Beetle Shield



FEATURES

  • Digital I/O Pins x4: D2-D5
  • Analog Input Pins x4: A0-A3
  • Vin input range: 5-8v
  • Mounting Holes x4 (3mm diameter)
  • Power Switch



DOCUMENTS

ARD03125
