EASY Plug Expansion for micro:bit - Keyestudio KS0496

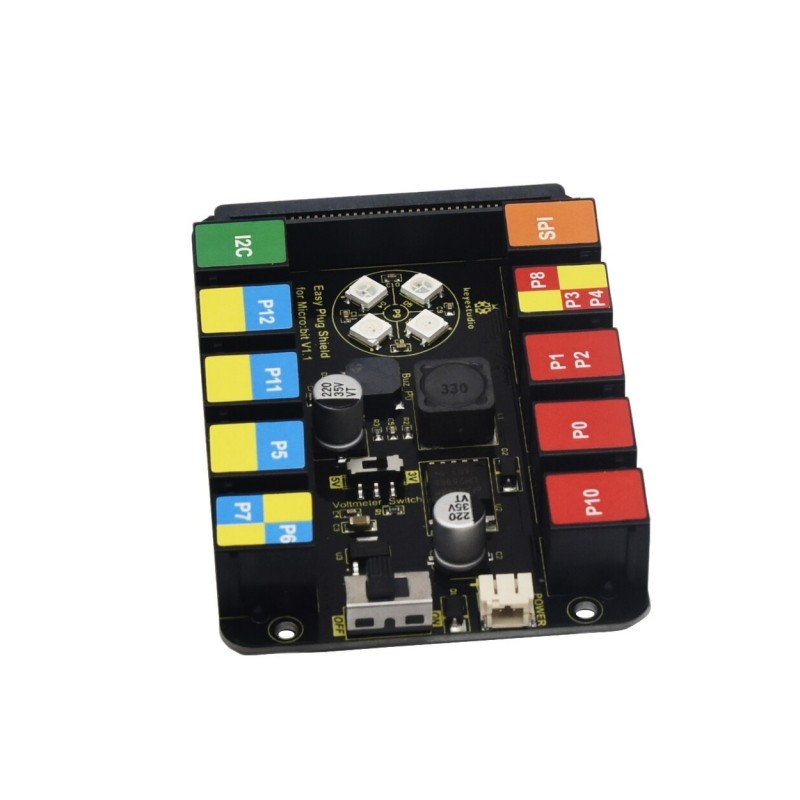

It's what you've been waiting for, the keyestudio EASY Plug Shield for micro:bit V1.0. It’s pretty easy to insert the micro:bit main board into the EASY Plug Shield for DIY experiments.
This EASY Plug Shield has been designed to offer an easy way to connect additional circuits and sensor/module hardware by 7 golden edge connectors or 10 EASY plug interfaces (RJ11-6P6C ).
You can tinker with your EASY Plug Shield for micro:bit without worrying too much about doing something wrong.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Note: Cable not included
Overview
Micro bit is a basic development board designed by BBC for teenagers programming education. It supports the PXT graphical programming interface developed by Microsoft, and can be used under Windows, macOS, IOS, Android and multiple operating systems, moreover, an additional compiler isn’t needed to be download.
Doing experiments with micro bit board, we particularly design EASY Plug Shield for micro bit V1.1 to make up the problem of wiring. You only need to insert the micro bit board into shield.
We can connect micro bit control board with sensor modules via golden finger interface on the shield, as well as 10 EASY plug interfaces, that is, the RJ11 6P6C interface.
Connecting EASY plug interface to other modules with via one special telephone line (RJ11 crystal head), which doesn’t make you worry about the issue of damaging the sensors and wiring wrong or reverse line.
Meanwhile, this shield comes with 4 WS2812 LEDs (controlled by P9), 1 buzzer (controlled by P0), 2 DIP switches and power_Switch controls power. Voltmeter_Switch is for controlling the voltage of V end (3.3V and 5V)on the EASY plug.
When electrified, the 2.0mm gray and white anti-reverse ports are connected, the supply power is DC 6-10v.
They can match with sensors/modules we provide with RJ11 6P6C ports. If the wiring order is different but with same interfaces , they still aren’t compatible.
Parameter:
Power: DC 6-10V
Output current: 1.5A
Interface: RJ11 6P6C interface and golden finger interface
Size: 98 * 65 * 17mm
Cable not included
Overview
Micro bit is a basic development board designed by BBC for teenagers programming education. It supports the PXT graphical programming interface developed by Microsoft, and can be used under Windows, macOS, IOS, Android and multiple operating systems, moreover, an additional compiler isn’t needed to be download.
Doing experiments with micro bit board, we particularly design EASY Plug Shield for micro bit V1.1 to make up the problem of wiring. You only need to insert the micro bit board into shield.
We can connect micro bit control board with sensor modules via golden finger interface on the shield, as well as 10 EASY plug interfaces, that is, the RJ11 6P6C interface.
Connecting EASY plug interface to other modules with via one special telephone line (RJ11 crystal head), which doesn’t make you worry about the issue of damaging the sensors and wiring wrong or reverse line.
Meanwhile, this shield comes with 4 WS2812 LEDs (controlled by P9), 1 buzzer (controlled by P0), 2 DIP switches and power_Switch controls power. Voltmeter_Switch is for controlling the voltage of V end (3.3V and 5V)on the EASY plug.
When electrified, the 2.0mm gray and white anti-reverse ports are connected, the supply power is DC 6-10v.
They can match with sensors/modules we provide with RJ11 6P6C ports. If the wiring order is different but with same interfaces , they still aren’t compatible.
Parameter:
Power: DC 6-10V
Output current: 1.5A
Interface: RJ11 6P6C interface and golden finger interface
Size: 98 * 65 * 17mm
