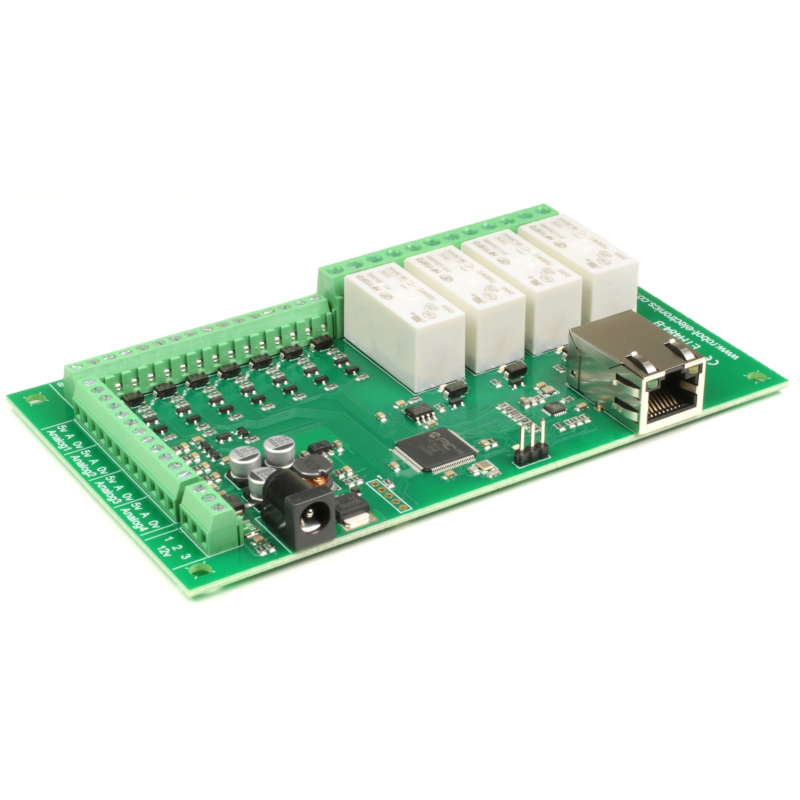

ETH484-B - 4x16A Ethernet Relay

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Controlled over Ethernet using simple TCP/IP commands.

Relays - 4
Digital Switching I/O channels - 8
Analogue Inputs - 4 x 5v 12 bit or 10 bit scaled to 3.3v maximum for backward compatibility
Power - 12V DC adaptor, supplied separately.
Configuration & Test interface - HTTP (webpage).
Control interface - TCP/IP over Ethernet.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.
Ethernet connection - 100mb full duplex

The ETH484-B is the upgraded successor to the ETH484, we have added MQTT and email with both providing optional TLS encryption. Hostname is now configurable and the ETH484-B offers drop in compatibilty to the ETH484.

Full ETH484-B Documentation

Java network scanner app, easily find your module even on another subnet - Devantech module finder

Examples:
Java - command line application for controlling the module
Perl - Simple example of setting an output active/inactive by tcp
PHP script - Simple example of setting an output active/inactive by tcp
Python V2 - command line application for controlling the module
Python V3 - command line application for controlling the module
Visual C# - source code for simple program, includes UDP scan to determine any boards connected to the local network
