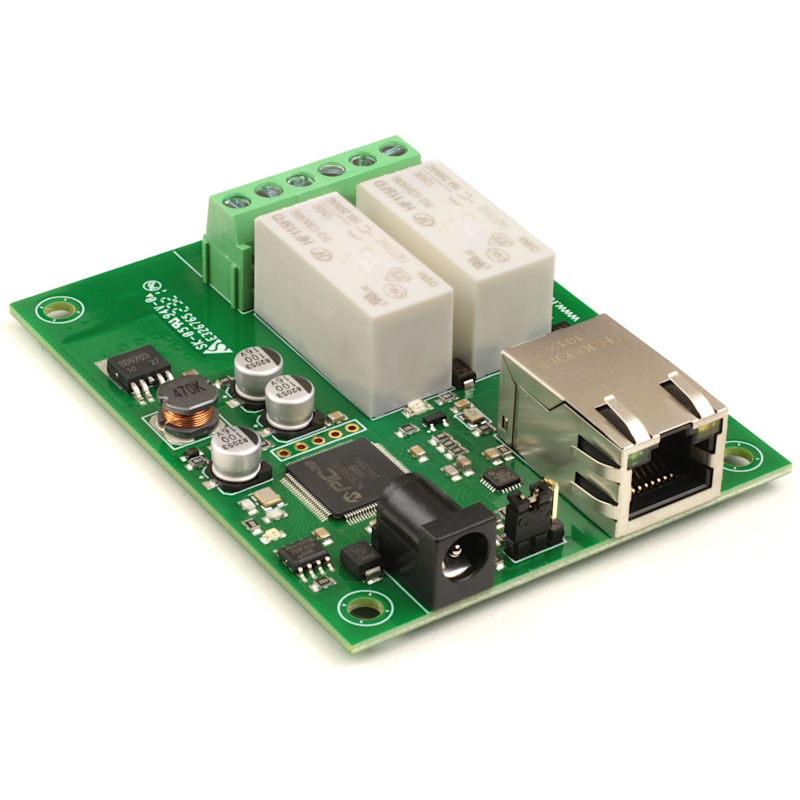

ETH002-B - 2x16A Ethernet Relay

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

Relays - 2
Power - 12V DC adaptor, supplied separately
Configuration & Test interface - HTTP (webpage)
Control interface - TCP/IP over Ethernet
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts
Ethernet connection - 100mb full duplex

The ETH002-B is the upgraded successor to the ETH002, we have added MQTT with optional TLS encryption. Hostname is now configurable and there is full backward compatibility to the ETH002.

Full ETH002-B Documentation.
