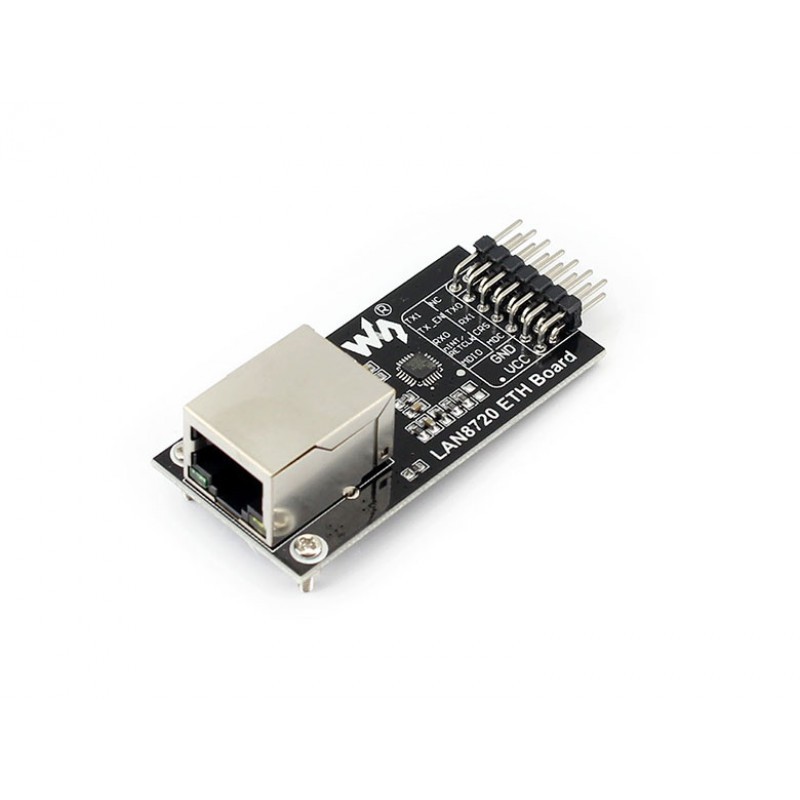

LAN8720 ETH Board

CAUTION: This product is protected by patent, anyone making copies/knock-offs SHOULD be held liable pursuant to law.

Features

• High-Performance 10/100 Ethernet Physical Layer Transceiver (PHY)
• Supports single 3.3V supply
• Supports the reduced pin count RMII interface
• Supports HP Auto-MDIX
• Onboard chip package: 24-pin QFN (4x4 mm) Lead-Free RoHS Compliant package
• Flexible Power Management Architecture
• Integrated 1.2V regulator
• I/O voltage range: +1.6V to +3.6V

Applications

• Embedded web server

Dimension

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/LAN8720 ETH Board

Package Content

Weight: 0.013 kg
