W5100 Ethernet Network Module

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

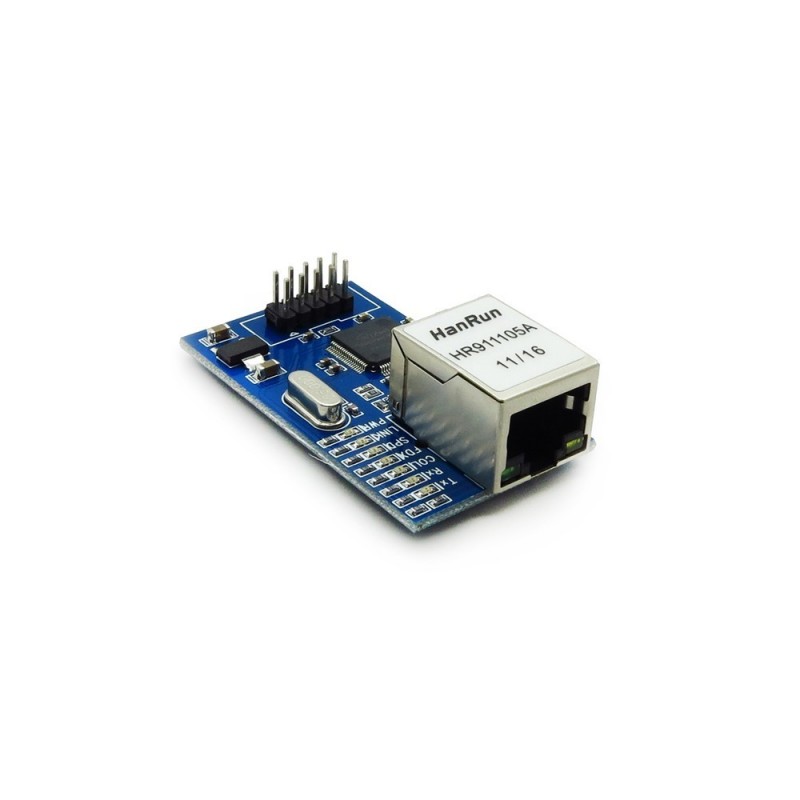

Overview

It's a breakout board for W5100 embedded TCP/IP chip. Included on the board is an RJ-45 with XFMR connector. It can be used as a component and little effort is required to interface to the W5100. This module is an ideal option for users who want a simple solution to adding TCP/IP capability to their project. To make this W5100 Ethernet Network Module work with SD card module, please read this blog: How to Make W5100 Module Work with SD Card Module?

Features

• Supports 10/100 Base TX
• Supports half/full duplex operation
• Supports auto-negotiation and auto cross-over detection
• IEEE 802.3/802.3u Compliance
• Operates 3.3V with 5V I/O signal tolerance
• Supports network status indicator LEDs
• Includes Hardware Internet protocols: TCP, IP Ver.4, UDP, ICMP, ARP, PPPoE, IGMP
• Includes Hardware Ethernet protocols: DLC, MAC
• Supports 4 independent connections simultaneously
• Supports MCU bus Interface and SPI Interface
• Supports Direct/Indirect mode bus access
• Supports Socket API for easy application programming
• Temperature : 0 ~ 70℃ (Operation), -40 ~ 85℃ (Storage)

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.
