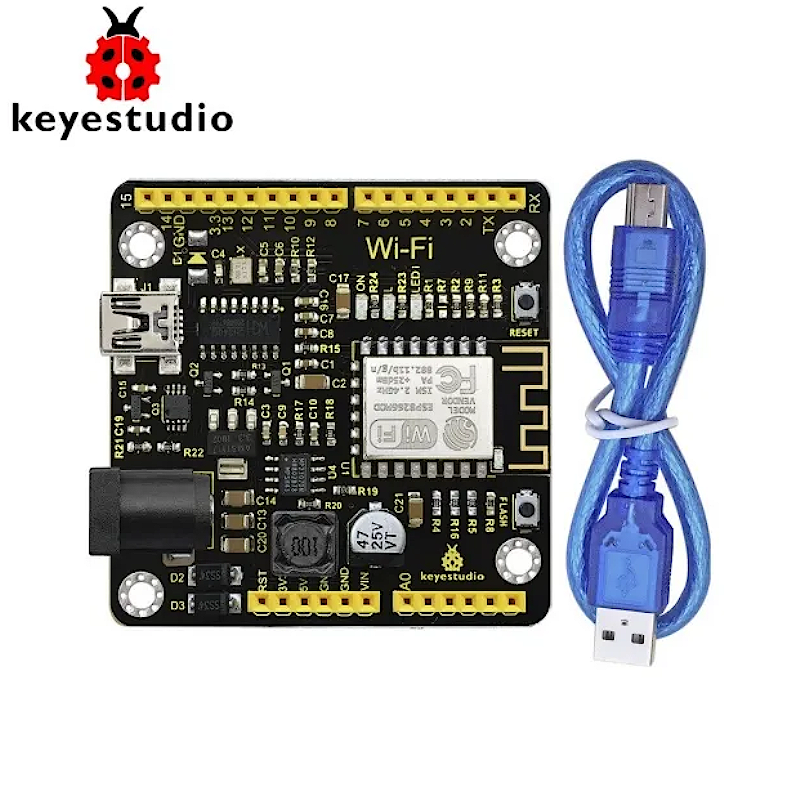

ESP8266 WI-FI Development Board with UNO R3 PINOUT - Keyestudio KS0354

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

The processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a smaller package, with 16-bit Lite mode.
The main frequency supports 80MHz and 160 MHz.
It supports RTOS, integrated with Wi-Fi MAC/BB/RF/PA/LNA. Onboard comes with curved antenna.
This development board is a standalone network controller, which can add networking function to those existing devices.
It has 11 I/O ports (4 of which can be used as PWM output), and all I/O ports operate at 3.3V. It also comes with an AD input interface, supporting the voltage range of 0-3.3V.
The board can be powered via the USB port, or with an external power supply (DC 7-12V), or powered by the female headers Vin/GND (DC 7-12V).

Technical Details

1. Microcontroller: ESP8266-12F

2. Operating Voltage: 3V3

3. Input Voltage (recommended): DC 7-12V

4. Digital I/O Pins: 8 (GPIO2, GPIO4, GPIO5, GPIO12, GPIO13, GPIO14, GPIO15, GPIO16)

5. Analog Input Pins: 1 (A0)

6. IO output maximum current: 12 mA

7. Main frequency supports 80 MHz and 160 MHz

8. LED_BUILTIN: GPIO 14

9. Comes with an external power jack (DC 7-12V)

10. Dimensions: 54mm*56mm*15mm
