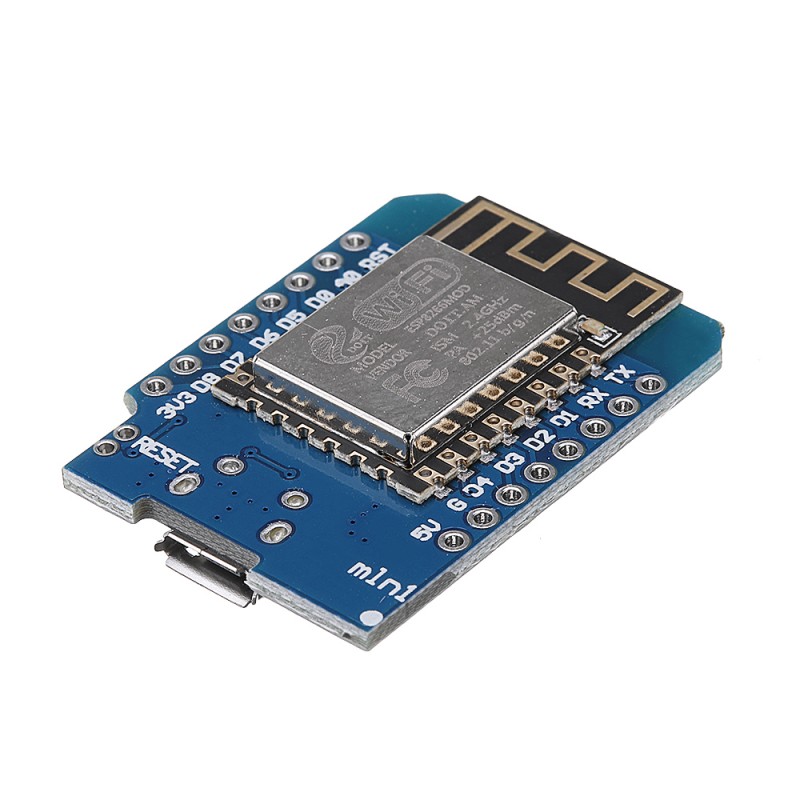

WeMos® D1 mini ESP8266 4MB FLASH w/ USB TTL Driver

: ARD02078
€6.95
Tax included

A mini wifi board with 4MB flash based on ESP-8266

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • 11 digital IO, interrupt/pwm/I2C/one-wire supported(except D0)
  • 1 analog input(3.2V max input)
  • a Micro USB connection
  • Compatible with MicroPython, Arduino, nodemcu

Technical specs

Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1(3.2V Max)
Clock Speed 80/160MHz
Flash 4M Bytes

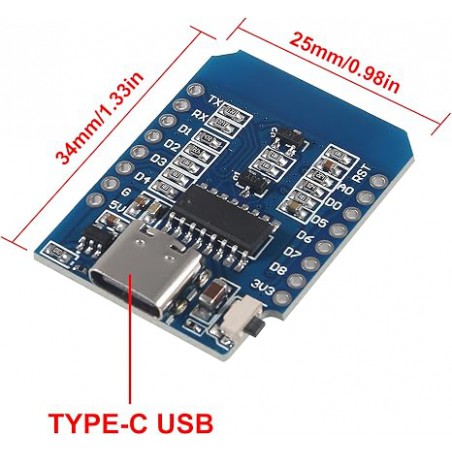

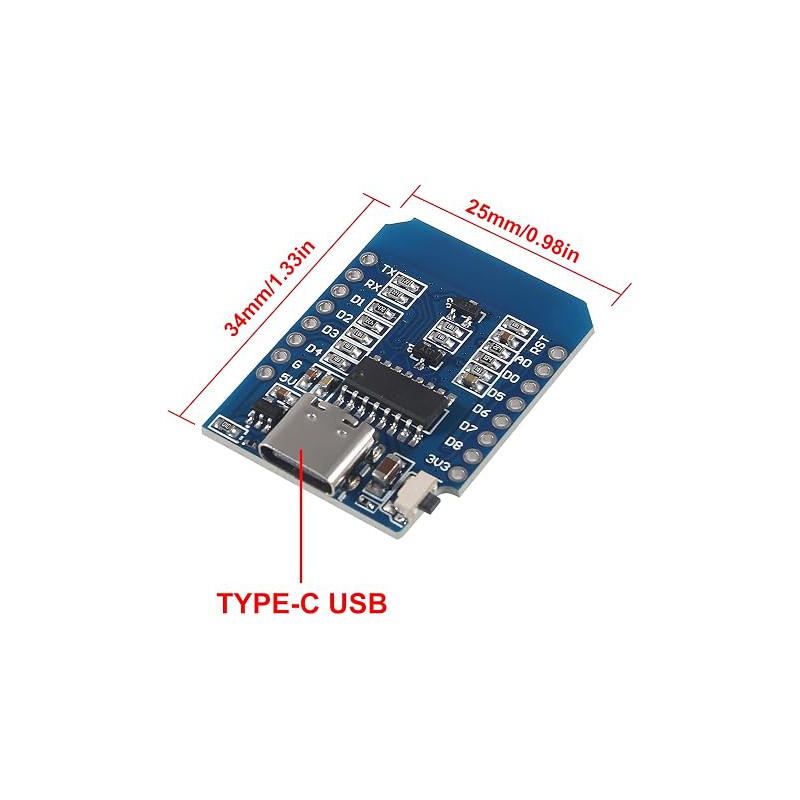

Size 34.2*25.6mm
Weight 3g

Pin

PinFunctionESP-8266 Pin
TX TXD TXD
RX RXD RXD
A0 Analog input, max 3.2V A0
D0 IO GPIO16
D1 IO, SCL GPIO5
D2 IO, SDA GPIO4
D3 IO, 10k Pull-up GPIO0
D4 IO, 10k Pull-up, BUILTIN_LED GPIO2
D5 IO, SCK GPIO14
D6 IO, MISO GPIO12
D7 IO, MOSI GPIO13
D8 IO, 10k Pull-down, SS GPIO15
G Ground GND
5V 5V -
3V3 3.3V 3.3V
RST Reset RST



Package included:
1 x D1 mini
2 x Long female pin
2 x Short female pin
2 x Normal pin
