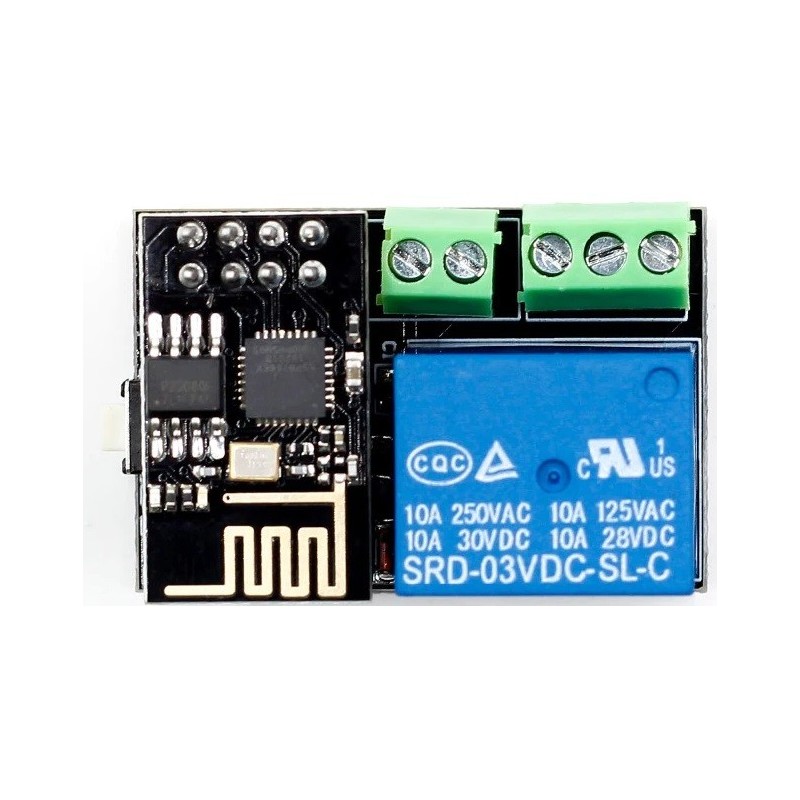

Relay Shield with ESP8266 ESP-01 (ESP-01 included)

: MRE04042
€7.50
€6.50 Save €1.00
Tax included

This intelligent relay module is designed based on ESP-01/01S WIFI module and can be used for DIY's own intelligent switch. It can provide APP and LUA source programs through remote control of mobile APP. Ready to use, simple and convenient.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



This intelligent relay module is designed based on ESP-01/01S WIFI module and can be used for DIY's own intelligent switch. It can provide APP and LUA source programs through remote control of mobile APP. Ready to use, simple and convenient.


Download Android APP, LUA source code and Manual:

Wire Conections:

Connections
This WIFI relay based on AI-Thinker ESP-01S WIFI module. It is designed for smart home, Internet of thing and other DIY project. With this smart relay, you will easy to DIY your smart switch to control any device by your phone anywhere. We support the APP and LUA source code.
We had upload a demo code in the ESP0-01S, just supply a DC5V power, then you can control it.


Product parameters:

  • Product size: 37 * 25mm
  • Operating voltage: DC5V
  • Communication: WIFI (ESP8266 module)
  • Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)
  • Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times


Package Included:

1 x ESP-01S / ESP8266 5V WiFi module
1 x Relay board ESP-01S / ESP8266
