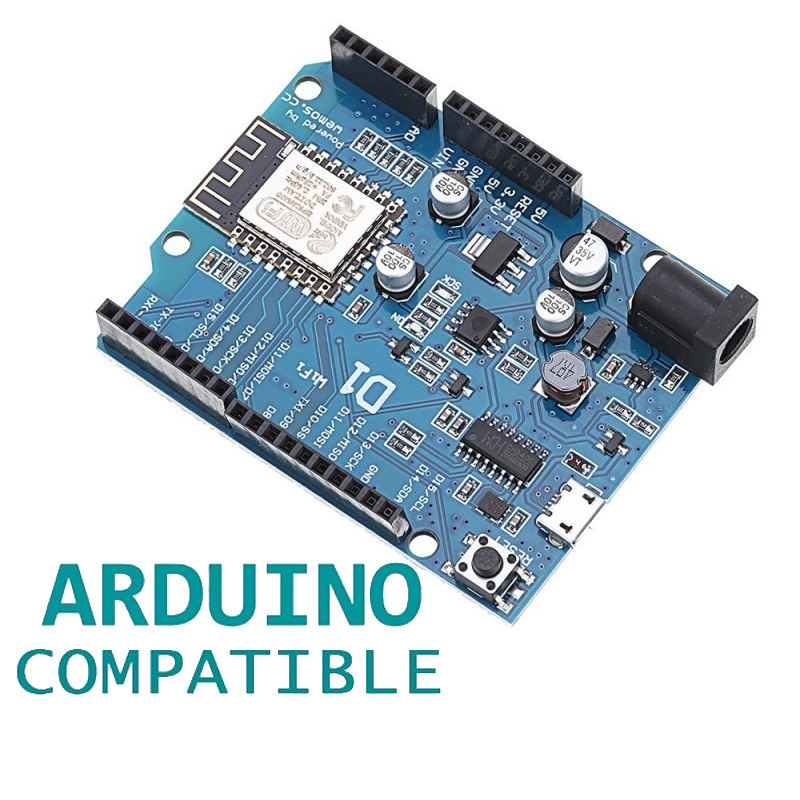

D1 Wifi ESP8266 (ESP12F-4MB Flash) Arduino Uno R3 format (3.3V logic)

: ARD02070
€9.95
€8.95 Save €1.00
Tax included

An Arduino UNO Compatible wifi board based on ESP8266

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except for D0)
  • 1 analog input(3.2V max input)
  • Micro USB connection
  • Power jack, 9-24V power input.
  • Compatible with Arduino
  • Compatible with nodemcu

Tutorials

Documentation

Technical specs

MicrocontrollerESP-8266MOD
Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1(Max input: 3.2V)
Clock Speed 80MHz/160MHz
Flash 4M bytes
Length 68.6mm
Width 53.4mm
Weight 25g

Pin

PinFunctionESP-8266 Pin
TX TXD TXD
RX RXD RXD
A0 Analog input, max 3.3V input A0
D0 IO GPIO16
D1 IO, SCL GPIO5
D2 IO, SDA GPIO4
D3 IO, 10k Pull-up GPIO0
D4 IO, 10k Pull-up, BUILTIN_LED GPIO2
D5 IO, SCK GPIO14
D6 IO, MISO GPIO12
D7 IO, MOSI GPIO13
D8 IO, 10k Pull-down, SS GPIO15
G Ground GND
5V 5V -
3V3 3.3V 3.3V
RST Reset RST
All of the IO pins have interrupt/pwm/I2C/one-wire support except D0.
All of the IO pins run at 3.3V.
