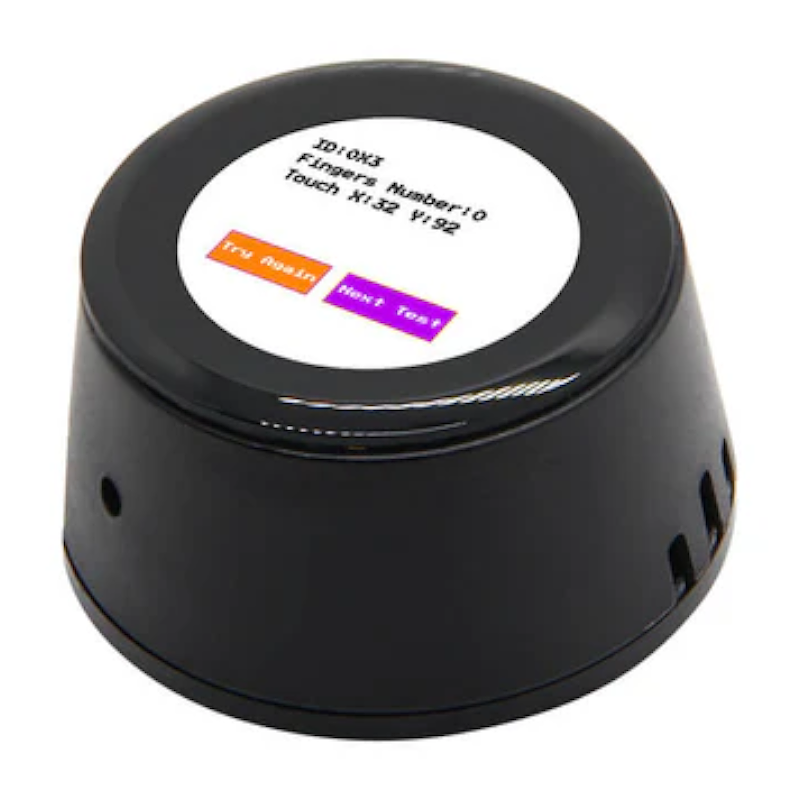

T-Circle-S3 ESP32-S3 TTGO w/ Display 0.75i speaker and microphone - LILYGO® H738

: PCO05175
€37.80
Tax included

T-Circle-S3 is a development board with a 0.75-inch onboard small screen developed based on the ESP32S3, equipped with a speaker, microphone, and three-color LED lights. It has six programmable input/output IO ports on the back, which can be expanded to connect a variety of peripherals.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications [T-Circle S3]

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth5 (LE)
Development Arduino, PlatformIO-IDE, ESP-IDF
Flash 16MB
PSRAM 8MB
Size 32*17mm
USB Charging 5v 500mA


0.75-inch 4SPI TFT LCD

 Driver IC GC9D01N
Resolution 160RGB X 160

Specifications [T-Circle]





Pin Diagram
