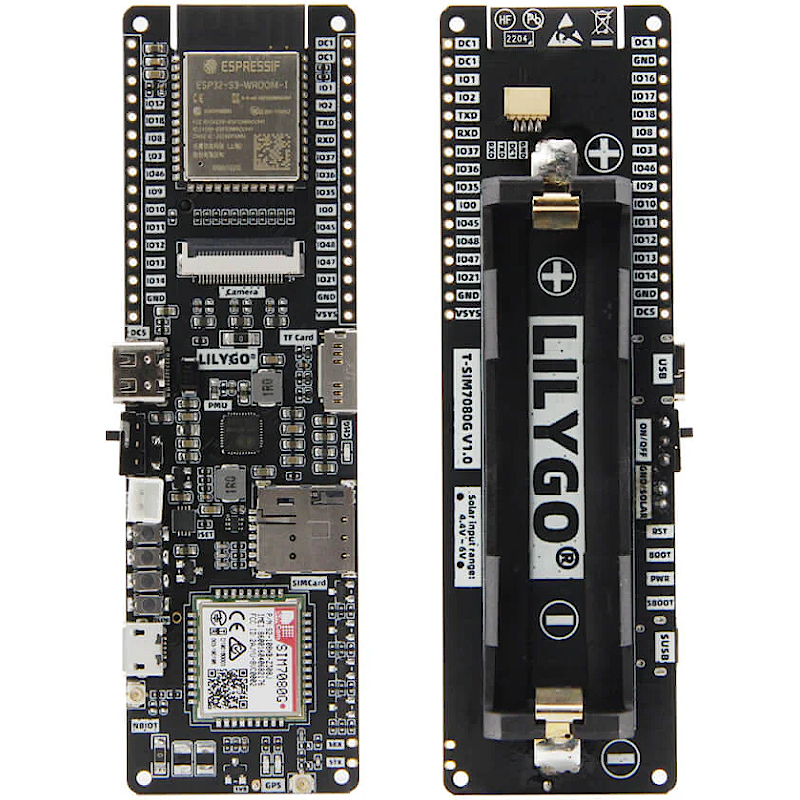

The T-SIM7080G-S3 from Lilygo is an Internet of Things (IoT) development board based on the ESP32-S3 chip and uses the SIM7080G modem chip from SIMCom. The board supports Cat-M, NB-IoT, WIFI and Bluetooth 5.0 with GPS and has 16 MB flash memory and 8 MB PSRAM2. It can be controlled via various interfaces such as UART, I2C or SPI. The board is ideal for IoT applications like smart home, smart city, smart agriculture, and industrial automation. On the back there is a pre-installed 18650 battery compartment for a Li-Ion battery to enable autonomous operation. If the energy is not sufficient, a 4.4-6V solar cell can be connected in addition to charging the battery.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Technical Details:

  • Manufacturer: Lilygo
  • Manufacturer SKU: H606
  • Solar cell voltage input: 4.4-6V
  • MCU: ESP32-S3
  • ESP32-S3 Clock Rate: 240Mhz
  • ESP32-S3 Flash Memory: 16MB
  • ESP32-S3 PSRAM: 8MB
  • ESP32-S3 Wi-Fi: IEEE 802.11 b/g/n-compliant
  • ESP32-S3 Bluetooth LE: Bluetooth 5, Bluetooth Mesh
  • ESP32-S3 Peripheral Interfaces: I2C, SPI, UART, SDIO, I2S, CAN
  • CAT-M & NB-IoT: SIM7080G
  • SIM7080G Form Factor: 77 PIN
  • SIM7080G Region: G:Global
  • CAT-M Frequency Bands: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85
  • CAT-NB Frequency Bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28
  • CAT-M Uplink Data Transfer: 1119Kbps
  • CAT-M Downlink Data Transfer: 589Kbps
  • CAT-NB Uplink Data Transfer: 150Kbps
  • CAT-NB Downlink Data Transfer: 136Kbps
  • Standby Power Consumption: 0.6uA
  • PSM Power Consumption: 3.2uA
  • Power Supply Voltage: 3.4~4.2V
  • GNSS: GPS, GLONASS, BS and Galileo
  • Protocol: TCP, IP, IPV4, IPV6, DNS, Mulit-PDP, FTP, FTPS, HTTP, HTTPS
  • Android RIL: Android 5.0, 6.0, 7.0, 8.0, 9.0
  • USB Driver: Microsoft Windows 7/8/10, Linux, Android
  • SIM Card 1.8V/3.0V
  • Certification: RoHS, REACH, JATE, Telec, Docomo, KDDI, Softbank, RCM, CE(RED), GCF, Deutsche Telekom, FCC, PTCRB, AT&T, Verizon, T-Mobile, US Cellular, IC
  • Dimensions: 110 x 32 x 19.5mm
  • Weight: 66g





Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-SIM7080G-S3

Great for M2M applications like metering, asset tracking, remote monitoring, E-health, etc.,

Size

Pin Diagram
