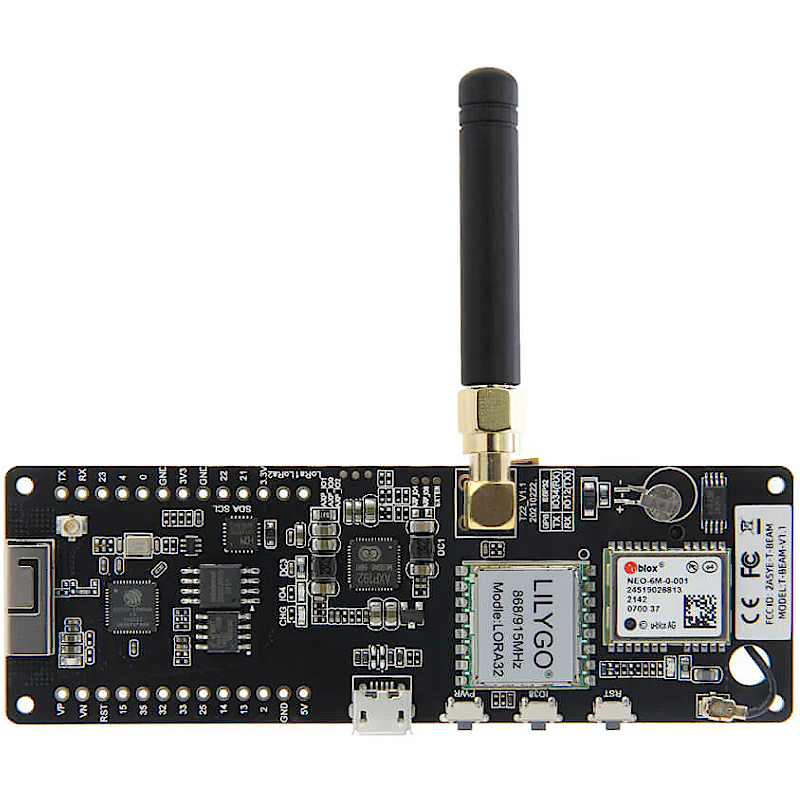

T-Beam Helium: ESP32 LoRa SX1276 868mhz with NEO-6M GPS and 18650 Battery Holder - LILYGO® Q412

:PCO05164
€43.70
Tax included

The LILYGO T-Beam offers 26-pin headers with GPIO, ADC, VP/VN, DAC, touch, SPI, I2C, UART, 2דLoRa” pin, and power signals (5V/3.3V/GND) There are also three buttons on the board—one is for POWER, the second is connected to the GPIO38 pin of the ESP3 and the third is to Reset.The board is built around ESP32 chip, with 4MB of SPI flash onboard, providing both Wi-Fi and Bluetooth 4.2. The board’s LoRa support comes for 868MHz and a small antenna. While location tracking is provided by the onboard u-Blox NEO-6M GPS module with a ceramic antenna.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (868mhz [Q412])



Specifications

MCU ESP32
Flash 4MB
PSRAM 8MB
Driver CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
PMU AXP2101
Onboard functions 3 Buttons (Power+IO38+Reset)
Power Supply Mode Support USB / 18650 battery
NEO-6M GPS Modules Support GPS protocol
Onboard RTC crystal, Support interrupt/wakeup
 Long Range Low Power LoRa Transceiver:
High sensitivity -148 dBm
Transceive rate 300 kbps
LoRa Chip Name SX1276

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Beam Helium

Pin Diagram

 More Details
