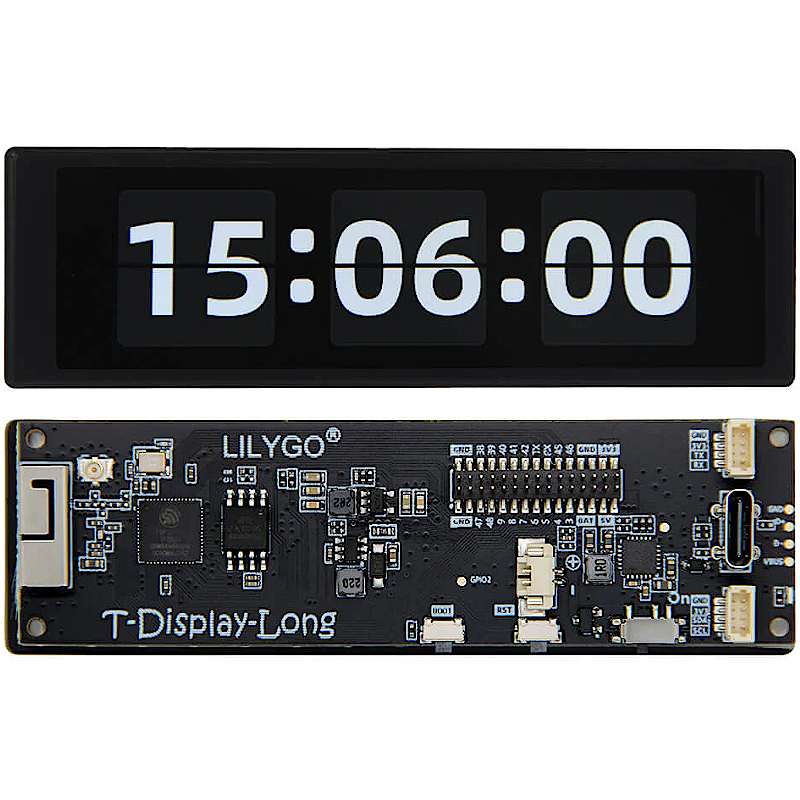

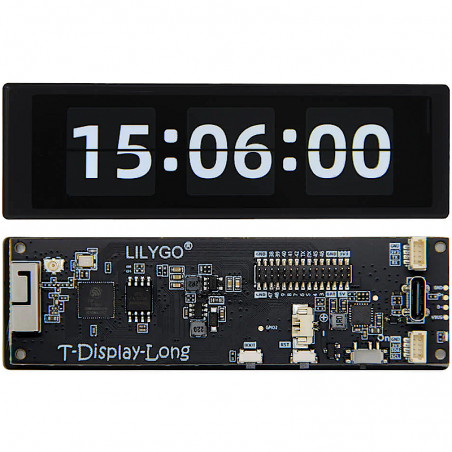

T-Display S3 Long: ESP32-S3 with 3.4inch Capacitive Touch TFT LCD (shell not included)- LILYGO® H685

:PCO05160
€42.70
Tax included
Embedded electronics specialist LILYGO has launched a new development board based on the Espressif ESP32-S3 system-on-chip, and this one's for anyone who struggles to squeeze a user interface into a narrower layout: the ultra-wide T-Display S3 Long.

The T-Display S3 Long, is built around the Espressif ESP32-S3R8 system-on-chip — giving it a 32-bit dual-core Tensilica Xtensa LX7 processor running at up to 240MHz, vector extensions for improved performance of on-device machine learning and artificial intelligence (AL and ML) workloads, 512kB of static RAM (SRAM) and a further 8MB of pseudo-static RAM (PSRAM) off-chip — plus 16MB of off-chip SPI flash storage.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (T-Display S3 Long BASIC [H685])



Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity Wi-Fi 802.11, BLE 5 + BT mesh
Programming Platform Arduino-ide, VS Code
Flash 16MB
PSRAM 8MB
Bat voltage detection IO02
Onboard functions Boot + Reset Button, Battery Switch
 3.4-inch Capacitive Touch TFT LCD (Support Touch Function):
Color depth 565, 666
Resolution 180(H)RGB x640(V)
Interface QSPI

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Display-S3 Long

Size

Pin Diagram

T-Display-S3-Long_2.jpg?v=1720405630

More

Basic Version

PCO05160
