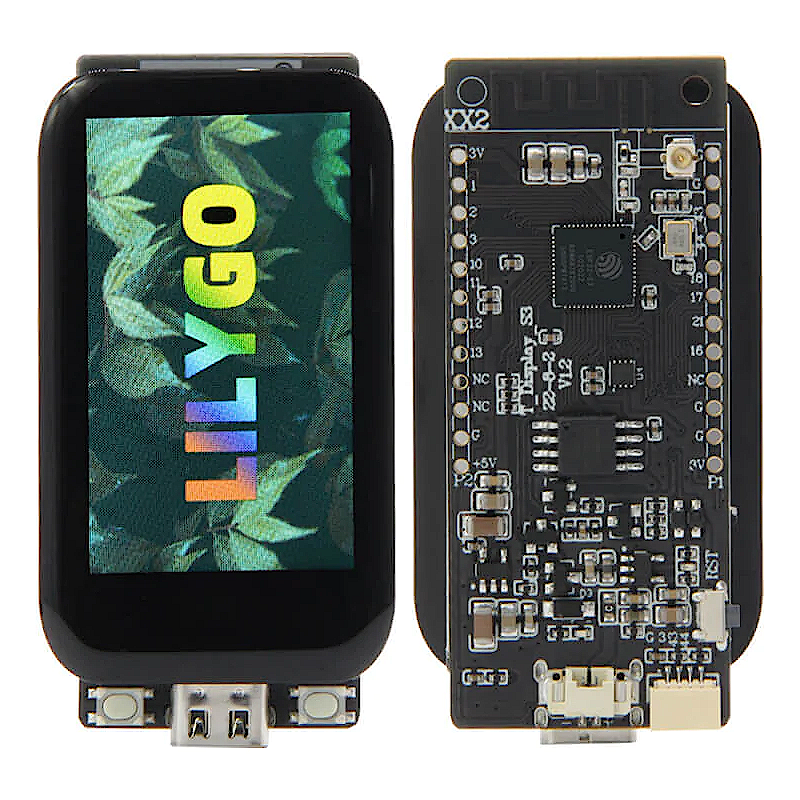

T-Display-S3 ESP32-S3 with Capacitive Touch Display 1.91in 170x320 (Soldered PIN) - LILYGO® H589
T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.
To complement this product and its protection, we recommend the following product: T-Display S3 Shell
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
More info and updated documentation on LilyGo product page (Touch Soldered [H589])
Specifications
MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
Programming Platform | Arduino-ide、 Micropython |
Flash | 16MB |
PSRAM | 8MB |
Bat voltage detection | IO04 |
Onboard functions | Boot + Reset + IO14 Button |
LCD | 1.9" diagonal, Full-color TFT Display |
Drive Chip | ST7789V |
Resolution | 170(H)RGB x320(V) 8-Bit Parallel Interface |
Working power supply | 3.3v |
Support |
STEMMA QT / Qwiic JST-SH 1.0mm 4-PIN |
Connector | JST-GH 1.25mm 2PIN |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-Display-S3
What engineers have done with T-Display-S3
Car Dashboard/Controller, Game, Monitors....
T-Display-S3 Introduction
-
The T-Display series has added a new member.
-
It comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].
-
The screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
-
This will be the second LILYGO model Display with an acrylic plate fixed.
-
The overall design continues the design of the T-Display series.
1. Size
