If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
More info and updated documentation on LilyGo product page (T-Display-S3 [H577])
Note:
![](https://cdn.shopify.com/s/files/1/0617/7190/7253/files/H569_480x480.jpg?v=1661998560)
Specifications
MCU |
ESP32-S3R8 Dual-core LX7 microprocessor |
Wireless Connectivity |
Wi-Fi 802.11, BLE 5 + BT mesh |
Programming Platform |
Arduino-ide、 Micropython |
Flash |
16MB |
PSRAM |
8MB |
Bat voltage detection |
IO04 |
Onboard functions |
Boot + Reset + IO14 Button +
JST-SH 1.0mm 4pin Connector
|
LCD |
1.9" diagonal, Full-color TFT Display |
Drive Chip |
ST7789V |
Resolution |
170(H)RGB x320(V) 8-Bit Parallel Interface |
Working power supply |
3.3v |
Technology Support [Github]
If you need technical support please check the link to find more details.

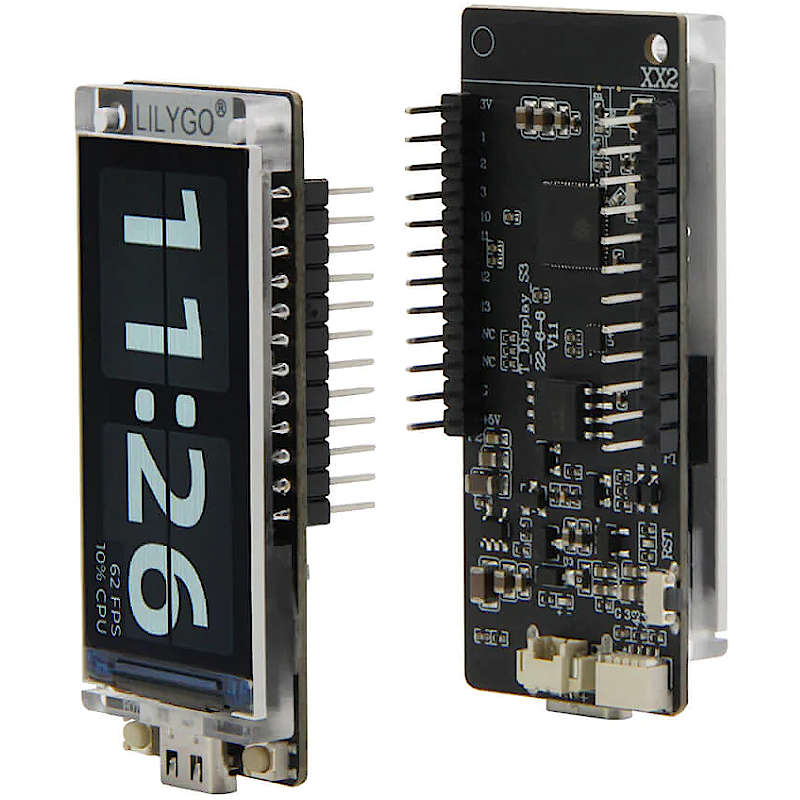

T-Display-S3
T-Display-S3 Introduction
The T-Display series has added a new member.
It comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].
The screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
This will be the second LILYGO model Display with an acrylic plate fixed.
The overall design continues the design of the T-Display series.
![](https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/H577-T-Display-S3_Welding_6_480x480.jpg?v=1661154201)
![](https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/product-dislay_955d9c6d-6ec8-4aa7-a14b-12bcbc0757c1_480x480.jpg?v=1657875024)
1. Pin Diagram
![https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/Lilygo-T-display_13.jpg](https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/Lilygo-T-display_13.jpg)
2. Appearance Details
![](https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/H577-T-Display-S3_Welding_1_c72e5329-4791-4924-ac68-e9b79ca5eb5a_480x480.jpg?v=1661236961)
![](https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/H577-T-Display-S3_Welding_6_480x480.jpg?v=1661154201)
![](https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/shipping-list-all_6bc15e1a-b1d3-44b3-b0e2-7d78e551b5c7_480x480.jpg?v=1657875287)
![](https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/H577-T-Display-S3_Welding_3_480x480.jpg?v=1661154156)
