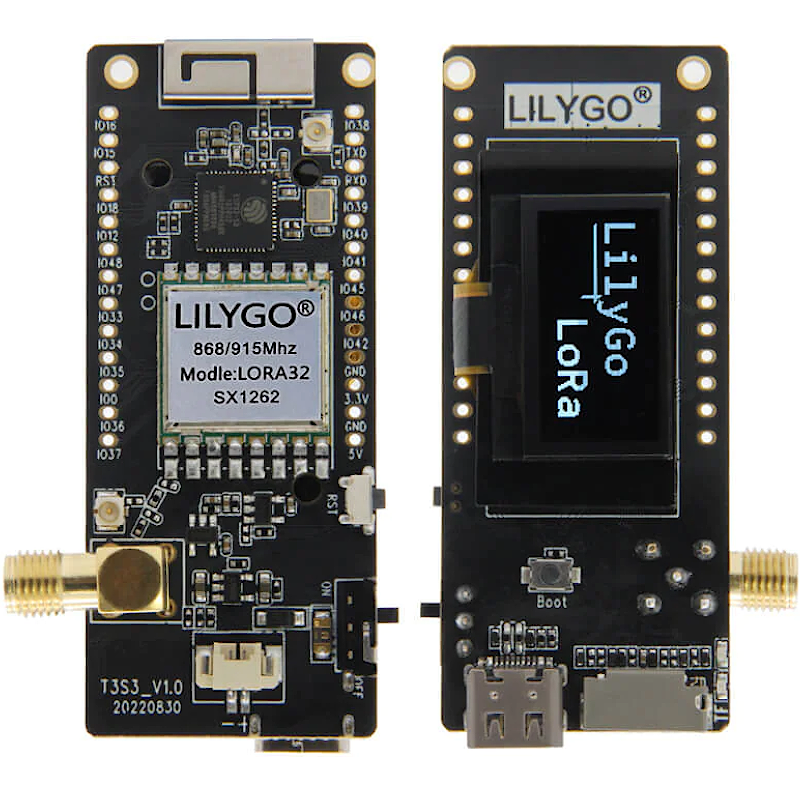

T3-S3 ESP32-S3 LoRa SX1262 868MHz w/ OLED 0.96 - LILYGO® H595

:PCO05136
€28.90
Tax included
  • Powerful LoRa Communication Performance: Equipped with LoRa module, it provides excellent long-range communication performance, suitable for IoT applications blocking restricted range and low power consumption.

  • Advanced Main Control Chip: Integrated into the main control chip, providing greater computing performance and additional interface options, increasing the flexibility and expandability of the device.

  • TF Card Support:The device supports TF cards (microSD cards) for extended storage, facilitating users in storing and managing data, especially useful in scenarios that disable large-capacity storage.

  • Wide range of applications: Leveraging the far-reaching capabilities of LoRa technology, this module finds applications in various IoT scenarios, including smart agriculture, smart cities and industrial IoT.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (SX1262 868MHz [H595])



Sample code for reference [Github]

T3S3 V1.0

Screen Specifications

Type

OLED

Resolution

128 x 64

Drive

SSD1306

Size

0.96-inch Diagonal

Interface

I2C

I2C Interface

SDA--IO18

SCL--IO17

Text Color

White

Background Color

Blue


Low Power LoRa Transceiver

LoRa Module

SX1280

SX1276

SX1262

Frequency Bands

2.4 Ghz

868/915MHz

868/915MHz

High-efficiency PA

+12dB

+14dBm

+22dBm/+15dBm

Low RX Current

9.9mA

9.9mA

4.6mA

Specifications

MCU

ESP32S3FH4R2

Flash

4MB

PSRAM

2MB

Wireless Connectivity

Wi-Fi 802.11

Bluetooth 5.0

Programming Platform

Arduino-ide、Micropython

Onboard Functions

  • TF Card Slot

  • USB or 3.7V Lipo Battery Power Supply

  • Battery Switch

Onboard Button

Reset + Boot

Size

Pin Diagram

https://cdn.shopify.com/s/files/1/0617/7190/7253/files/H594-PIN-DIAGRAM.jpg
