LoRa32 V2.1_1.6.1 ESP32 Paxcounter SX1276 (version 868MHz) , OLED 0.96, SD Card slot - LILYGO® Q168

: PCO05134
€28.20
Tax included
  • Version LoRa32 V2.1_1.6.1 == Version LoRa32 T3_1.6.1
  • Paxcounter is an ESP32 MCU-based program for metering passenger flows in realtime. It counts how many mobile devices are around. This gives an estimation how many people are around.
  • Paxcounter detects Wifi and Bluetooth signals in the air, focusing on mobile devices by evaluating their MAC adresses.
  • Intention of this project is to do this without intrusion in privacy: You don't need to track people owned devices, if you just want to count them.
  • Paxcounter does not persistenly store MAC adresses and does no kind of fingerprinting the scanned devices.
  • Data can either be be stored on a local SD-card, transferred to cloud using LoRa WAN network or MQTT over TCP/IP, or transmitted to a local host using serial (SPI) interface.
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (Paxcounter 868MHz [Q168])



Version 433MHz HERE

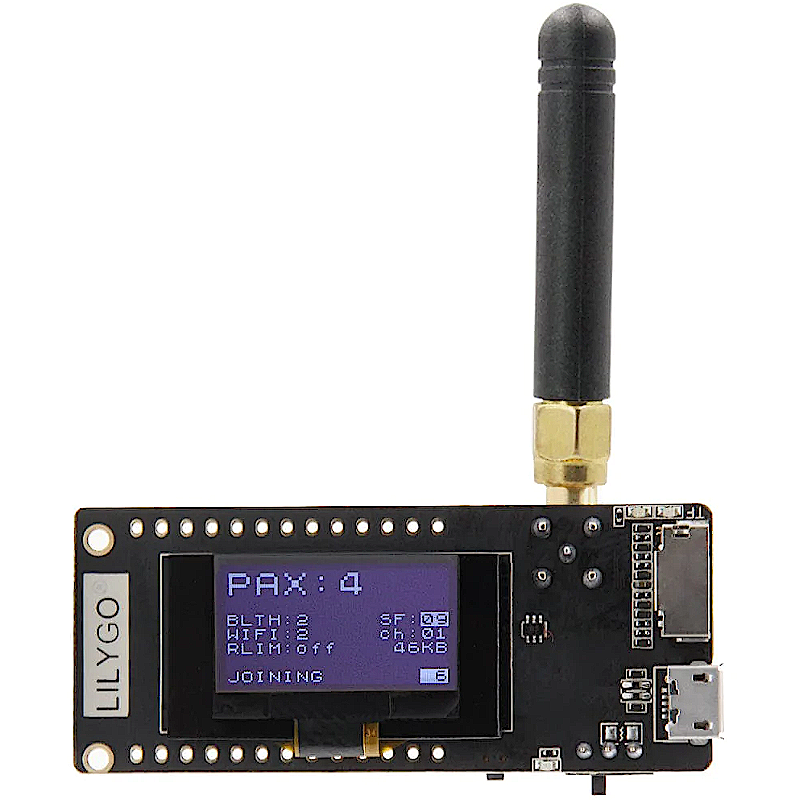

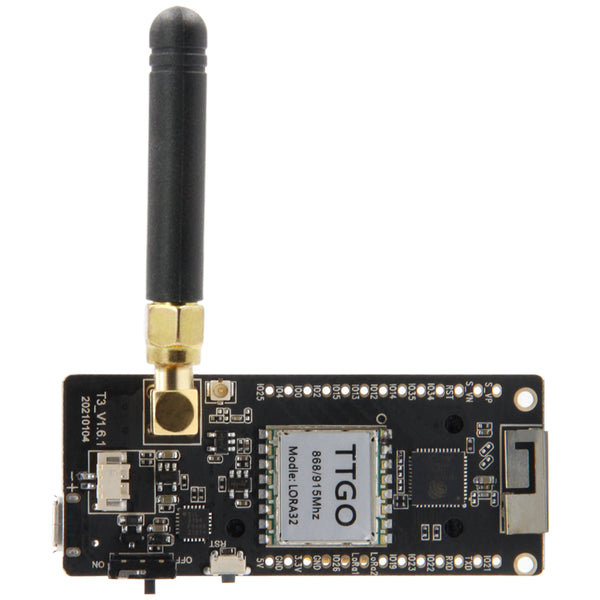

LILYGO Paxcounter LoRa V2.1_1.6.1 ( same as T3_V1.6.1) ESP32 868MHZ 0.96 Inch OLED SD Card Slot Bluetooth WIFI Module Metering Passenger Flows

Main features:

  • Digital RSSI function
  • Automatic frequency correction
  • Automatic gain control
  • Fast wake-up and frequency hopping
  • Highly configurable data packet handler
  • SMA Antenna

Specifications

MCU ESP32
 Flash 4MB
 Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
Support TF card slot
Onboard functions Reset \ Power switch
Antenna

3D WiFi Antenna [Use by default]

(Support WiFi IPEX external antenna, but you need to jump resistance)
LoRa antenna
Power Supply

Support USB Micro / Li-Po Battery Dual Power Supply
JST GH 2pin 1.25mm
[USB can power the battery]

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

ESP32-Paxcounter
TTGO-LoRa-Series

Paxcounter Testing：

cyberman54-ESP32-Paxcounter

LoRa32 V2.1_1.6 Disaster-Radio

https://disaster.radio/
https://github.com/sudomesh/disaster-radio
https://github.com/sudomesh/disaster-radio/releases/tag/0.2.0

Note : Pay attention to the OLED when opening the box.

Long Range Low Power LoRa Transceiver

  • High sensitivity: -i48dBm
  • Transceive rate: 300 kbps
  • Optional Hardware
  • Version: SX1276[868Mhz]

LoRa32 V2.1_1.6

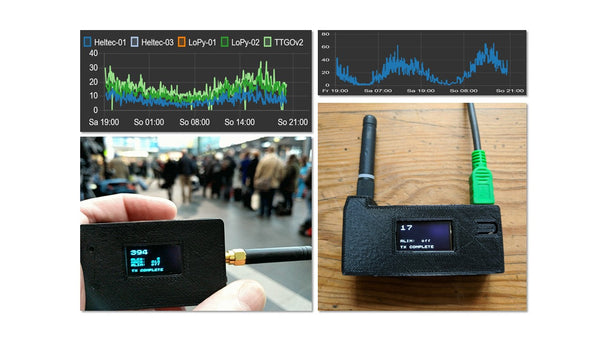

  • Paxcounter is an ESP32 MCU-based program for metering passenger flows in realtime. It counts how many mobile devices are around. This gives an estimation how many people are around.

  • Paxcounter detects Wifi and Bluetooth signals in the air, focusing on mobile devices by evaluating their MAC adresses.

  • Intention of this project is to do this without intrusion in privacy: You don't need to track people owned devices, if you just want to count them.

  • Paxcounter does not persistenly store MAC adresses and does no kind of fingerprinting the scanned devices.

  • Data can either be be stored on a local SD-card, transferred to cloud using LoRa WAN network or MQTT over TCP/IP, or transmitted to a local host using serial (SPI) interface.

  • Disaster.radio is an off-grid, solar-powered, long-range mesh network built on free, open source software and affordable hardware.

  • Designed to be open, distributed, and decentralized, disaster.radio is currently in the prototype/development phase.

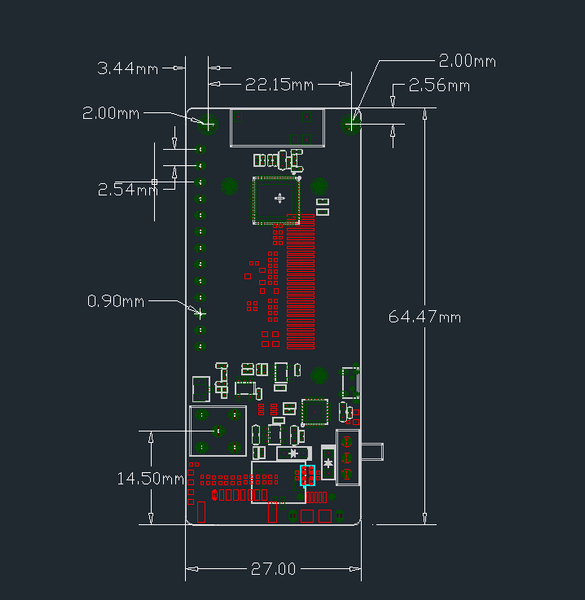

1. Size

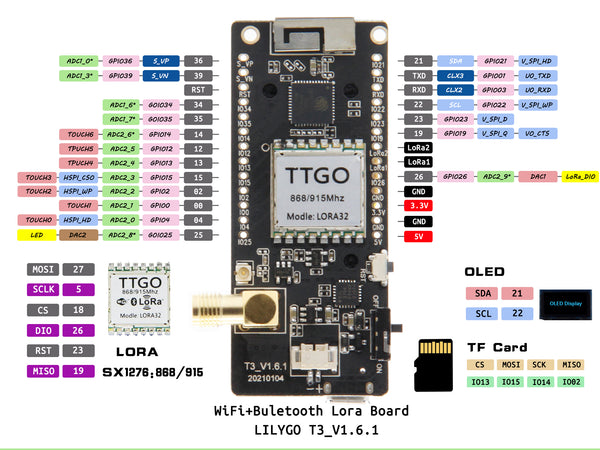

2. Pin Diagram

868Mhz CH9102F Options

(Notice: The shipping list does not include battery and SD card）

  • 1 X LoRa32 V2.1 868Mhz
  • 1 X Power Cable(Jst 2pin 1.25mm)
  • 1 X Antenna
  • 2 X Pin
