Mbits ESP32 Dev Board based on Letscode scratch 3.0, Arduino

Reference : PCO05112

€29.90

Tax included

The Mbits board is based on the Micro:bit board but with some differences. With Mbits you will have increased RAM memory (from 128KB to 8M) and due to its ESP32 you will be able to connect your board to Wi-Fi. In terms of Software this board can be used with Arduino or Letscode and if you already have an expansion board for your Micro:bit you can use them on this new board as these two are compatible.

If you want to know more about this product, please check the Wiki Page.

Quantity

Out-of-Stock

I accept General Data Protection Regulation terms

Description

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

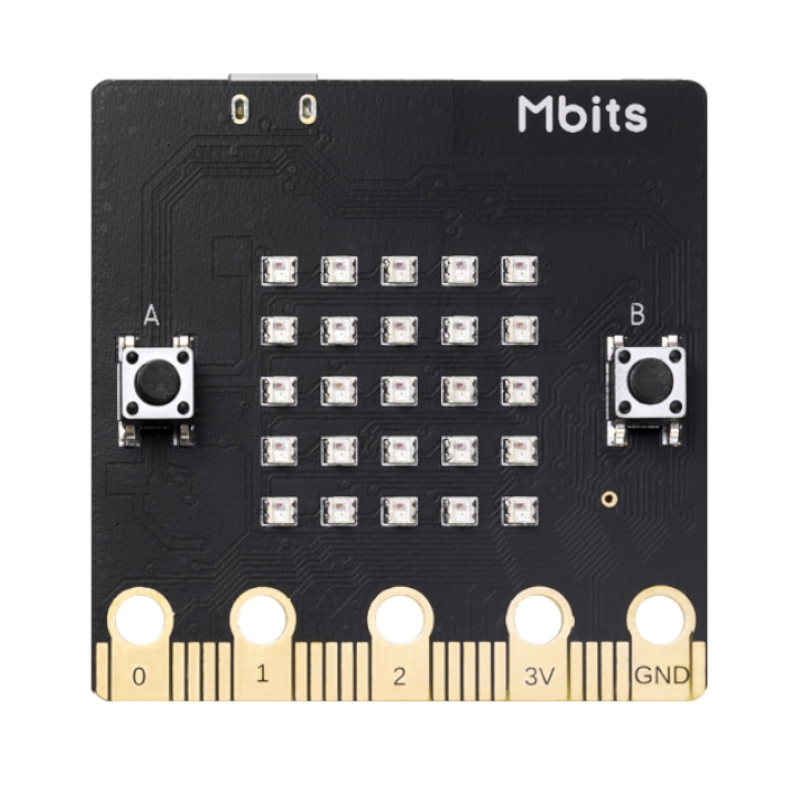

Mbits is a pocket-sized microcontroller that has lots of features the same as Microbit V2. Mbits is an ESP32-WROVER-B based educational hardware suitable for kids to learn how to program and experience hot topics such as IoT and AI.

The Mbits board is 52*52mm in size. Continues the style of the edge connector on the bottom of the BBC Micro: bit. If you already own Micro: bit expansion boards. Mbits is compatible with Micro: bit expansion boards, which enabling users to easily start the project with no need for any other knowledge support.

Integrate many inputs and output hardware such as 25 full-color LED lights, microphones, buzzers, enabling you to create a variety of interesting interactional works. If you want to realize wireless projects, it is equipped with a 2.4GHz micro: bit radio and BLE Bluetooth 4.2. It supports two programming software-Letscode(base on scratch 3.0) and Arduino.

Letscode is graphical programming software created mainly for the global needs of science and technology innovation education. With letscode, you can program by only dragging the building blocks with the mouse. It can help you learn the program of game design and robot control easily.

Features

Pocket-sized microcontroller designed
Wireless connectivity with built-in 2.4GHz micro: bit radio and BLE Bluetooth 4.2
Onboard MEMS microphone, speaker, 25 RGB LEDs
Onboard accelerometer for motion sensing applications
Notched edge connector for easier connections
Dedicated I2C bus for peripherals
Two programmable buttons
Supports Lestscode (based on scratch3.0) and Arduino IDE

Comparison between Mbits and the Micro: bit(v2.0)

	Mbits	Microbit(v2)
Processor	ESP32	Nordic Semiconductor nRF52833
Memory	16M Flash, 8M RAM	512KB Flash, 128KB RAM
Onboard	MEMS microphone	MEMS microphone and LED indicator
	5x5 RGB LED	5x5 Red LED
	Accelerometer	Accelerometer
	2 programable button	2 programable button
	On-board speaker	On-board speaker
	Temperature sensor	Temperature sensor
Edge Connector	25 pins. 3 dedicated GPIO, ADC,PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs	25 pins. 4 dedicated GPIO, PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection
Wireless	2.4GHz Radio/BLE WiFi & Bluetooth 4.2	2.4GHz micro:bit Radio/BLE Bluetooth 5.0
Power	5V via micro-USB port, 3V via edge connector or battery pack	5V via micro-USB port, 3V via edge connector or battery pack
Current available	500mA available for accessories	200mA available for accessories
Software	Letscode, Arduino	MakeCode, Python, Scratch
Size	5.2cm(w) x 5.2cm(h)	5cm(w) x 4cm(h)
