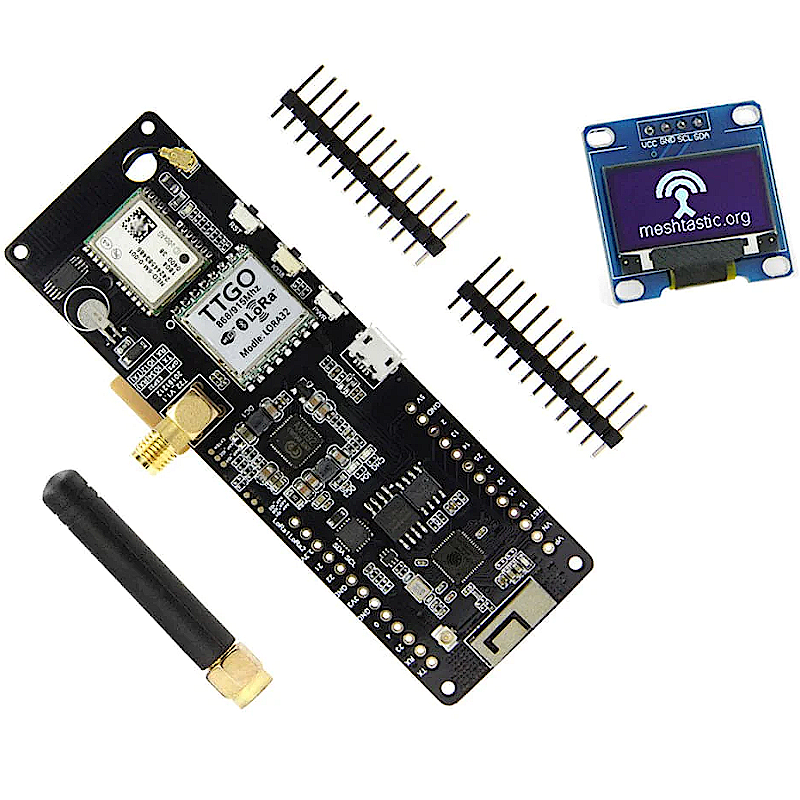

T-Beam Meshtastic ESP32, LoRa SX1276 868mhz, GPS NEO-6M, 18650 Battery Holder , (w/ oled 0.96 not soldered) - LILYGO® Q401

: PCO05110
€52.90
Tax included

What is Meshtastic?

Meshtastic® is a project that lets you use inexpensive GPS radios as an extensible, long battery life, secure, mesh GPS communicator. These radios are great for hiking, skiing, paragliding - essentially any hobby where you don’t have reliable internet access. Each member of your private mesh can always see the location and distance of all other members and any text messages sent to your group chat.

The radios automatically create a mesh to forward packets as needed, so everyone in the group can receive messages from even the furthest member. The radios will optionally work with your phone, but no phone is required.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (868MHz Non-Soldered OLED [Q401+L206]):

Note: OLED is not soldered to T-BEAM so if you need you can use T-Beam Shield directly



Meshtastic T-Beam ESP32 LoRa 433/868/915/923Mhz SX1276/SX1278 Wireless Module WiFi GPS NEO-6M With 0.96 inch OLED Display For Arduino.

Battery Size Reference

Specifications

MCU ESP32
Flash 4MB
PSRAM 8MB
Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
PMU AXP2101
Onboard functions 3 Buttons (Power+IO38+Reset)
Antenna
  • 3D WiFi Antenna [Use by default]
  • (Support WiFi IPEX external antenna, but you need to jump resistance)
  • LoRa antenna
  • GPS ceramic antenna

product-introduction_600x600.jpg?v=1656989548

Description

GPS

  • NE0-6M GPS Modules: Support GPS protocol
  • Onboard RTC crystal, Support interrupt/ wakeup

LoRa

  • Long Range Low Power LoRa Transceiver
  • High sensitivity: -i48dBm
  • Transceive rate: 300 kbps
  • Optional Hardware
  • Version: SX1278[433Mhz] / SX1276[868/915/923Mhz]

Display Details

  • OLED: 0.96 inch
  • Driver: SSD1306

Software

  • Meshtastic

Power Supply Mode

Support USB Micro/ 18650 battery holder [USB can power the battery]

product-display2_600x600.jpg?v=1656989909

1. Appearance

product-display_600x600.jpg?v=1656990015

2. Size

product-size_600x600.png?v=1656990054

3. Pin Diagram

https://cdn.shopifycdn.net/s/files/1/0617/7190/7253/files/pin-diagram.jpg

combination-product1_600x600.jpg?v=1656990188

combination-product_600x600.jpg?v=1656990258

shipping-list-all_600x600.jpg?v=1656990367

[Pay attention to the OLED when opening the box, ship without 18650 battery]



433Mhz or 868Mhz Options

(OLED Not Soldered Version)

  • 1 X T-Beam V1.1 CH9102

  • 1 X 433Mhz or 868Mhz Antenna

  • 1 X 0.96 inch 128X64  OLED

  • 2 X Pin

Technology Support [Github]

If you need technical support please check the link to find more details.

  1. Meshtastic-Android
  2. Meshtastic-device
  3. LilyGo LoRa Series
