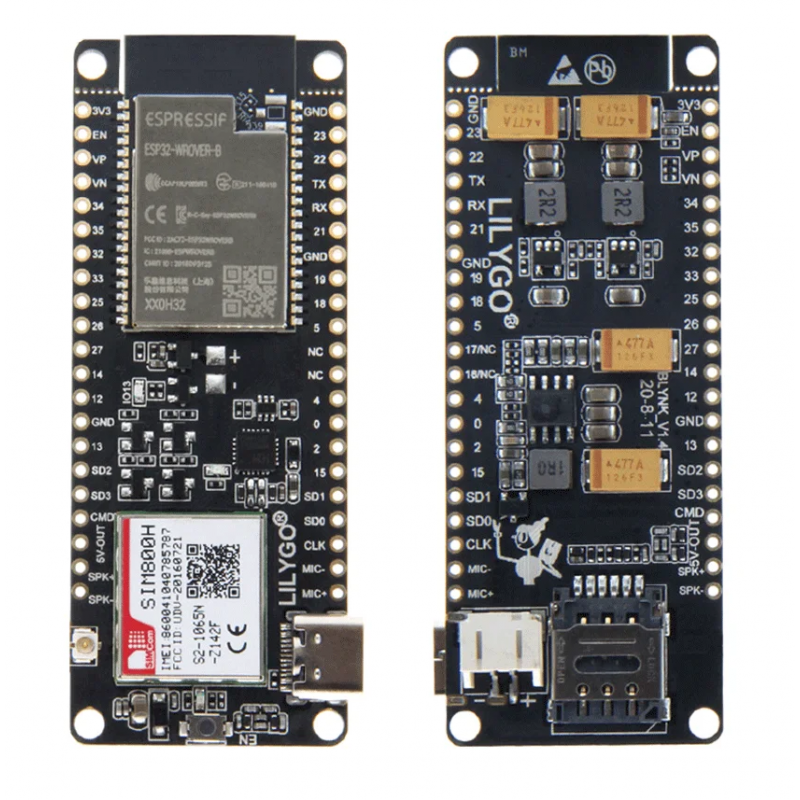

T-Call V1.4 ESP32 w/ SIM800H 4MB GSM/GPRS and driver CH9102 - LILYGO® H438

: PCO05099
€32.50
Tax included

A powerfull ESP32 with SIM800 GSM comunication module!

More information:
https://github.com/Xinyuan-LilyGO/LilyGo-T-Call-SIM800

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (T-SIM800H 4MB [Q336])


Specifications

MCU ESP32
GSM/GPRS SIM800H
SIM Nano Card Slot Yes [2G]
ESP32
Clock Speed 240Mhz
Flash 4MB
PSRAM 8MB
Wireless Connectivity Wi-Fi: 802.11 b/g/n
Bluetooth: v4.2 BR/EDR and BLE
Button EN
Charging IC IP5306
Serial Chip CH9102
Peripheral Interfaces  I2C、SPI、UART、SDIO、、I2S、CAN
Power Supply

Support USB Type-C / Li-Po Battery Dual Power Supply


JST Connect type : JST PH 2pin 2.0mm

[USB can power the battery]
Others

Supports pin extension of Mic and Speaker

[Ship without mic and speaker by default]

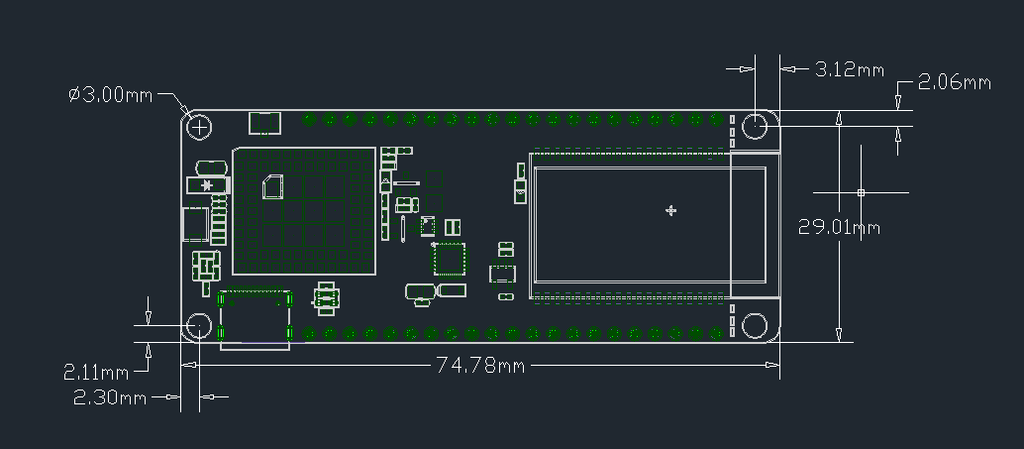

SIZE

O1CN01EDGPdY2D7ReaXCUWe__2657898562_1024x1024.png?v=1657779415

PIN DIAGRAM

LILYGO-TCALL_1024x1024.jpg?v=1657779582



https://ae01.alicdn.com/kf/S202e8fc2f10f43fa868e1db50b354dc02.jpg

Packing List

  • 1 X T-Call V1.4 Version [CH9102]
  • 1 X Power Cable(PH 2pin 2.0mm)
  • 1 X SIM Antenna(~7 cm)
  • 2 X Male Pin header

LILYGO-T-CALL_1_8cd7c339-6cd4-4308-abd5-5ea70e20569f_1024x1024.jpg?v=1697784029

LILYGO-T-CALL_5_1024x1024.jpg?v=1697784014

Notice

Connect the power supply, click to start, after the start, click to reset, and click twice to shut down.

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Call SIM800

https://github.com/Xinyuan-LilyGO/LilyGo-T-Call-SIM800/tree/master/examples/MicroPython_LoBo

Product Page: https://www.lilygo.cc/products/t-call-v1-4?_pos=1&_psq=Q336&_ss=e&_v=1.0&variant=42285821460661
