• DISCONTINUED

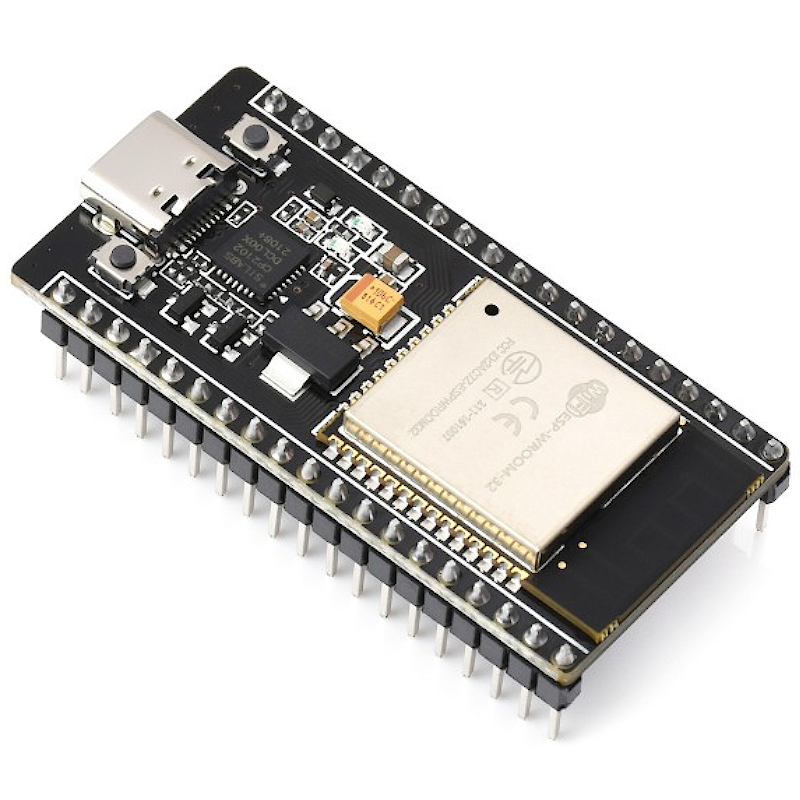

ESP32 Development Board WiFi + Bluetooth NodeMCU-32S

: ARD02074
€12.95
Tax included

This is the NodeMCU development board based on ESP32, features WiFi+Bluetooth connectivity, onboard CP2102 and keys. What's more, all the I/O pins of ESP32 module are accessible via the extension headers.

Thanks to the rich open-source resources, it supports development in various ways such as Lua/AT commands/MicroPython/Arduino/IOT source code, etc. helps you to fast prototype IoT applications.

NOTE: This product has been discontinued! As an alternative, we suggest the reference: PCO05183.

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • Onboard ESP32 module
  • Onboard CP2102, USB to UART converter
  • USB port for power input, firmware programming, or UART debugging
  • 2x19pin extension headers, breakout all the I/O pins of the module
  • 2x keys, used as reset or user-defined

Version Comparison


Specifications

  • WIFI module: ESP32
    • Processor: ESP32
  • Built-in Flash: 32Mbit
  • Antenna: Onboard PCB antenna
  • Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
  • WiFi protocol: IEEE 802.11 b/g/n
  • Bluetooth: Bluetooth 4.2
  • Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
  • WIFI mode: Station / SoftAP / SoftAP+Station
  • Power supply: 5V
  • Logic level: 3.3V
  • Dimensions: 51.4mm x 25.4mm

Applications

The NodeMCU-32S suit for IOT applications such as:

  • Smart home
  • Intelligent building
  • Industrial automation
  • Wearable devices
  • IP camera
  • Intelligent agriculture

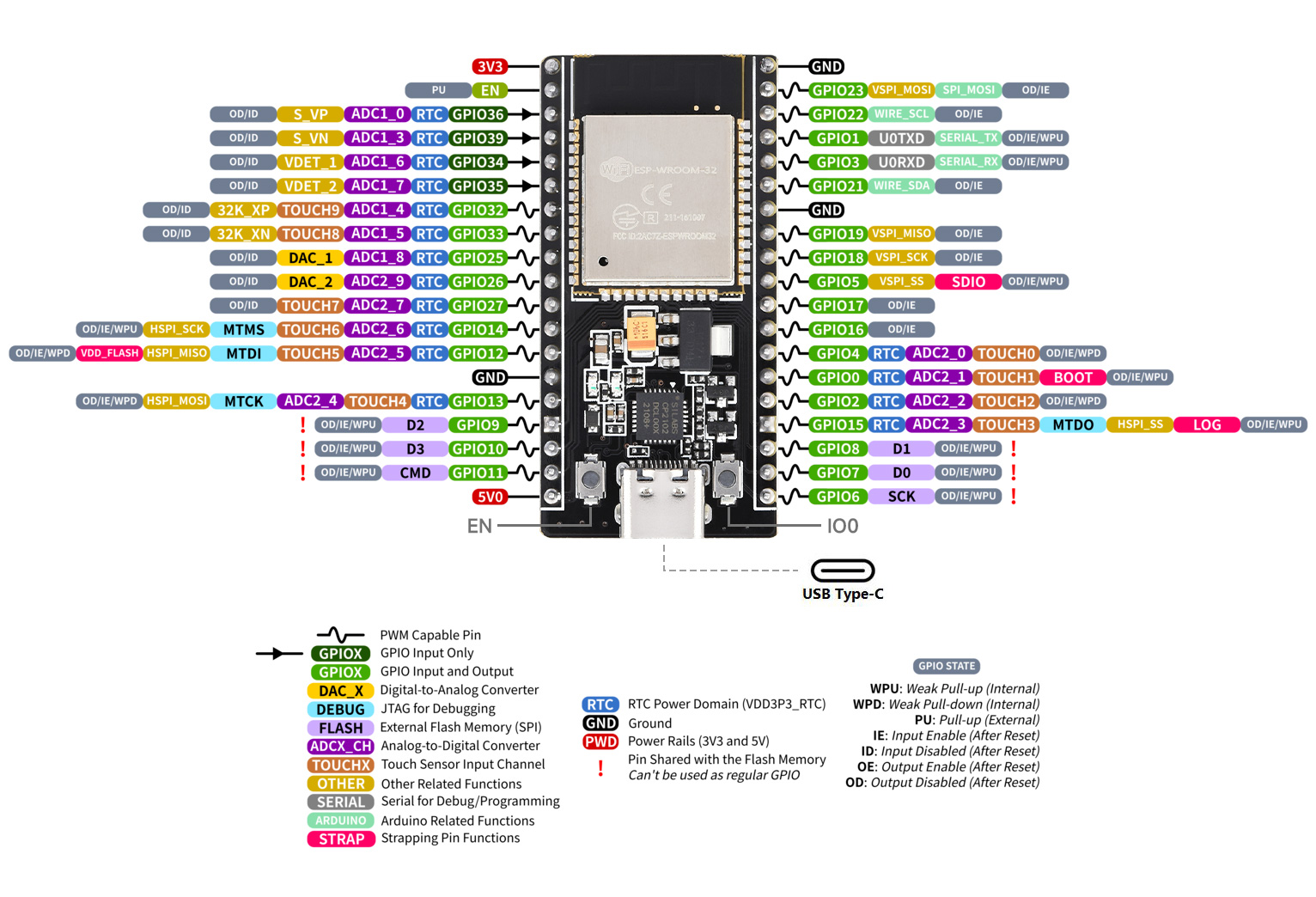

Pinouts


Development Resources

Wiki : www.waveshare.com/wiki/NodeMCU-32S
