Encoder Kit for Arduino (1pc)

: SEN10029
€2.90
Tax included

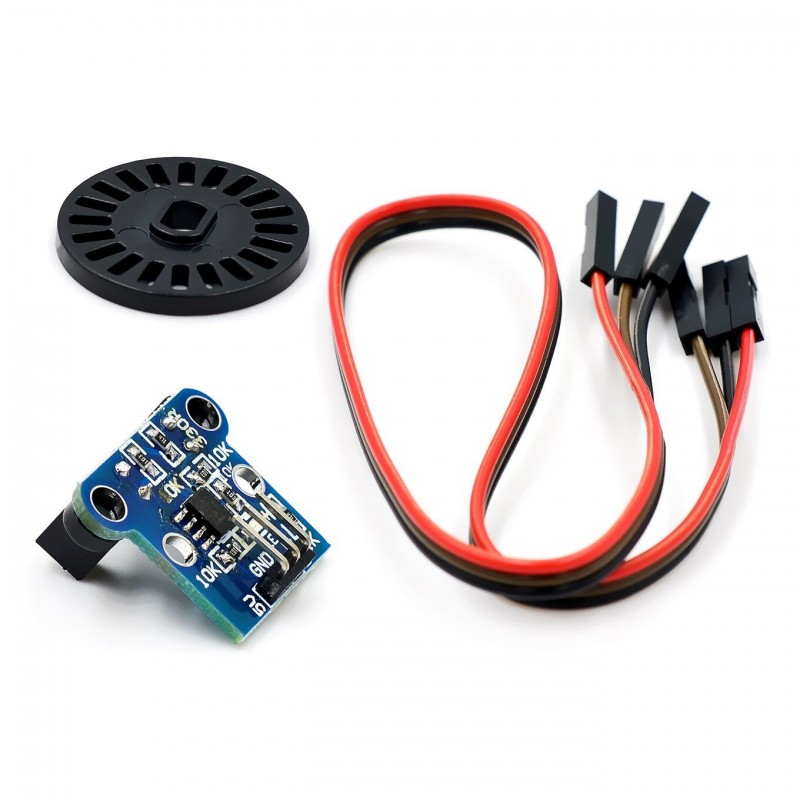

This kit including 1 piece code disk with D shape hole diameter 4mm and a through-beam sensor.

Quantity

This encoder is a wide voltage, high resolution, short response speed, Digital output speed measurement module. It can measuring the motor speed when it works with the black code disk. This encoder used a through-beam sensor. It have high resolution and output signal is a standard square wave.

This kit including 1 piece code disk module with D shape hole diameter 4mmnad cable.



Features:

  •  4.5V - 5.5V operating voltage
  • TTL outputs
  • 20mA consumption at 5V
  • Launch Tube Pressure Drop: Vf=1.6V
  • Launch Tube Current: If<20mA
  • Signal output: A, B two lines; TT power level;
  • Resolution: 0.01mm
  • Measurement frequency: 100KHz
  • Code disk diameter: 24mm
  • D shape hole diameter:4mm
  • 100kHz maximum PWM frequency
  • Encoder resolution: 20 lines
SEN10029
