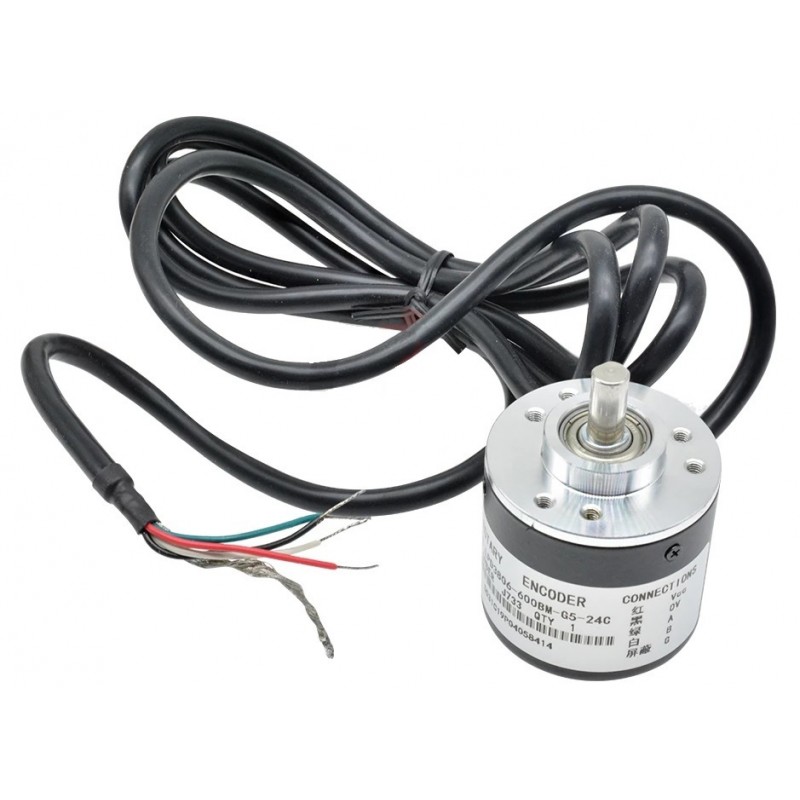

600CPR Encoder 5~24Vdc till 20KHz

:SEN20008
€23.45
Tax included

  • It is used to measure the rotational speed, angle and acceleration of the object and the length measurement

  • Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Encoder 600 Incremental Rotary Encoder

  • 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)
  • Power source: DC5-24V
  • Shaft: 6*13mm/0.23*0.51"
  • Size: 38*35.5mm/1.49*1.39"
  • Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
  • Maximum mechanical speed: 5000 R / min
  • Response frequency: 0-20KHz
  • Cable length: 1.5 meter
  • Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal


Connection:


Green = A phase, white = B phase, red = Vcc power +, black = V0


Application:

  • It is used to measure the rotational speed, angle and acceleration of the object and the length measurement

  • Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots



Package includes:

1 x Encoder 600P/R Incremental Rotary Encoder

SEN20008
