RASPBERRY PI 5 CASE BLACK AND GREY - RASPBERRY PI SC1160

: PCO01197
€10.95
Tax included

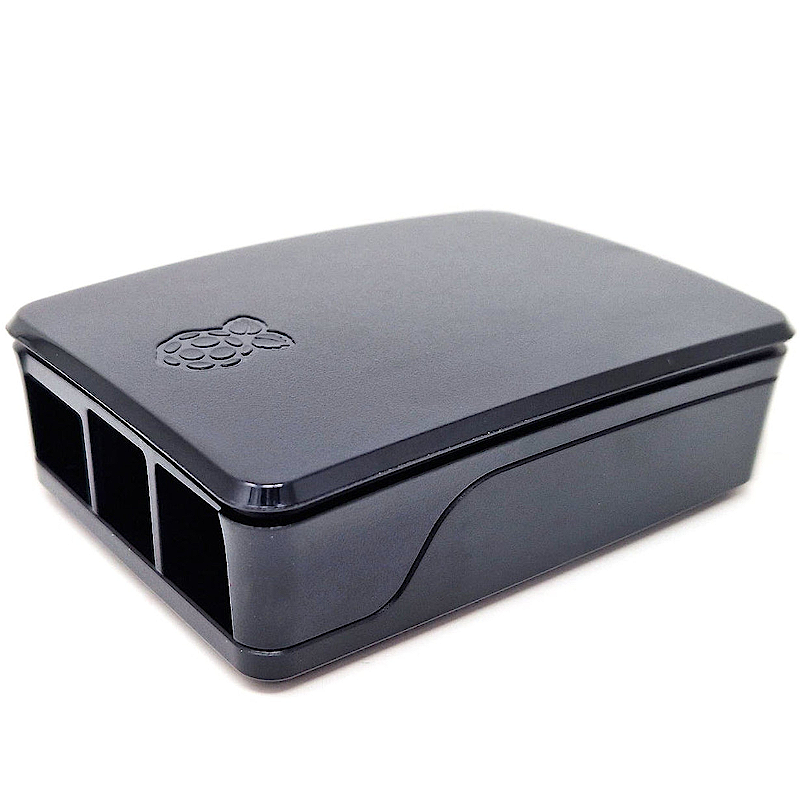

The Raspberry Pi Case for Raspberry Pi 5 is a clip-together four-part enclosure with an active cooling fan. It keeps your Raspberry Pi 5 at a comfortable operating temperature even under heavy load.

NOTE: Raspberry Pi is not inclued.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5

2mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor

Easily removable lid exposes fan and breakout slot for cables and GPIO

Integrated mounting features allow for case stacking

HATs can be mounted to the enclosure with stand-offs and GPIO header extenders
(not included)

Four silicone feet for the case are included



Specification

Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

Fan speed control: Pulse width modulation control with tachometer

Maximum airflow: 2.79 CFM

Maximum fan speed: 8000 RPM +/- 15%

Case material: ABS (base, frame, lid) and PC (fan assembly)
