DIN rail ABS Case for Raspberry Pi 5, large inner space, injection moduling - Waveshare 26682

:PCO01211
€4.20
Tax included

DIN Rail ABS Case For Raspberry Pi 5, Large Inner Space, Injection Moduling



Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

DIN rail ABS Case for Raspberry Pi 5

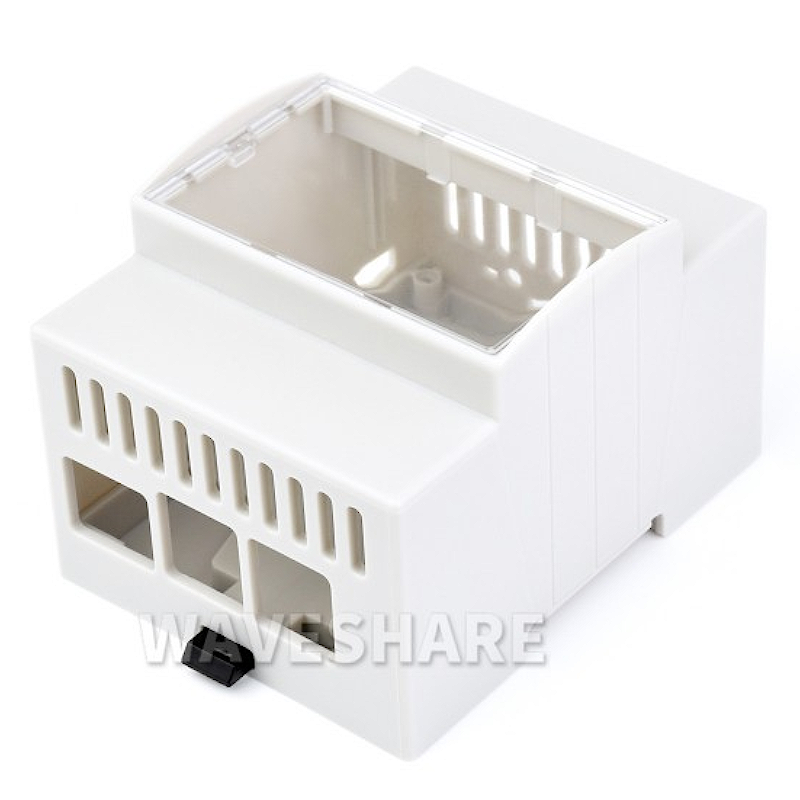

DIN rail mount support, ABS material, clear top window, large inner space





DIN rail mount support

injection moduling ABS body with rail mount support, easy-to-use


* for reference only, Raspberry Pi 5 and RS485 TO ETH (B) are NOT included.



Ingenious Opening Design





Compatible with various Raspberry Pi HATs

The large inner space allows accommodating an extra add-on


Recommended add-ons: PoE HAT (F), RS485 CAN HAT, 2-CH RS485 HAT



Outline dimensions





How to install




1. press the rail lock by forefinger, then push it out by thumb as the picture shown












2. remove the bottom panel from the main part








3. fix the Raspberry Pi onto the bottom panel by screws








4. put on the bottom panel, aligning it with the buckle and USB connectors








5. snap another side








6. insert the rail lock (note the different sides, don't be upside down)




Customize opening service

Design your unique case, the opening is customizable for 200PCS or more, the larger quantity, the lower price






Package Content

Weight: 0.108 kg

PI5-CASE-DIN-RAIL-B (with screw 2PCS) x1

PCO01211
