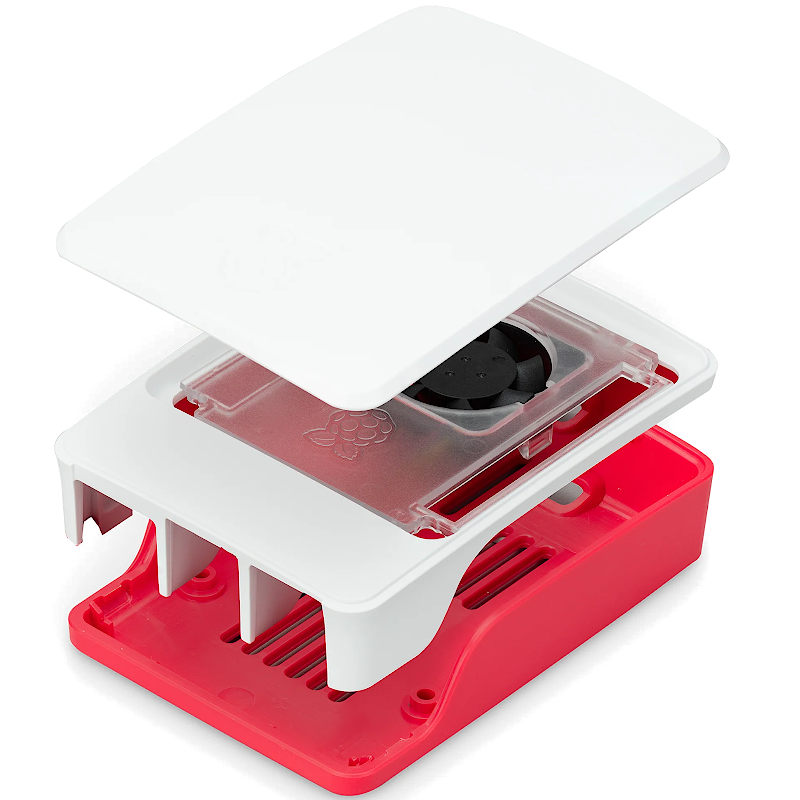

Raspberry Pi SC1159 Pi 5 Case Red and White

Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5

2mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor

Easily removable lid exposes fan and breakout slot for cables and GPIO

Integrated mounting features allow for case stacking

HATs can be mounted to the enclosure with stand-offs and GPIO header extenders
(not included)

Four silicone feet for the case are included

Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

Fan speed control: Pulse width modulation control with tachometer

Maximum airflow: 2.79 CFM

Maximum fan speed: 8000 RPM +/- 15%

Case material: ABS (base, frame, lid) and PC (fan assembly)
