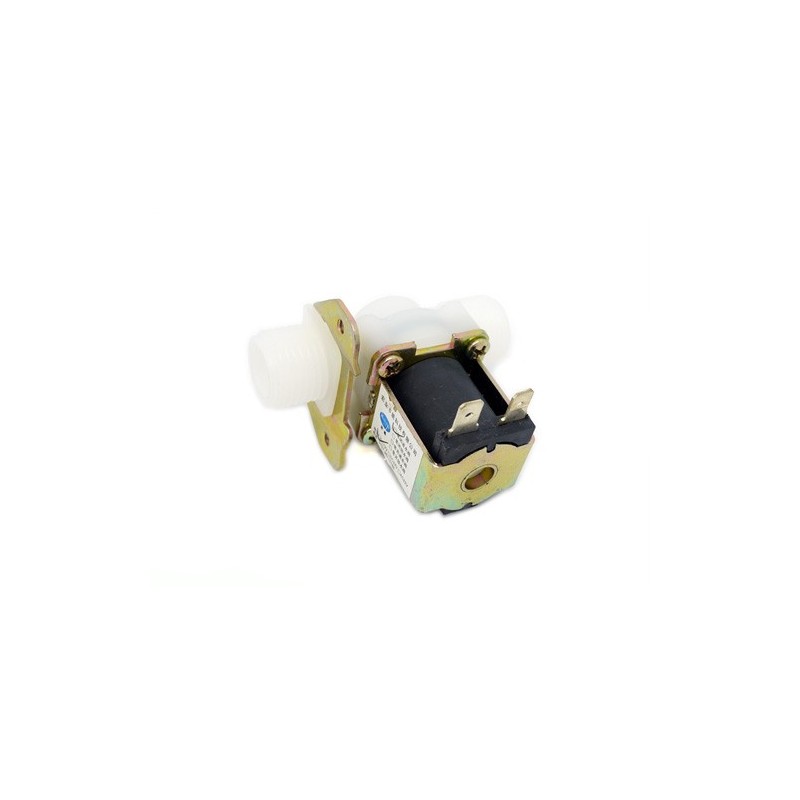

Normally closed G1/2 12VDC electric solenoid valve



Quantity

This is a normally closed G1/2 12VDC electric solenoid valves with barbed inlet and outlet ports, great for projects involving low viscosity fluid control. You can find it ubiquitous on applications like automatic faucets, foot operated faucets, drinking fountains etc.



Features

  • Normally closed
  • Durable
  • Stainless steel inlet filter
  • Wide operation temperature range



Specifications

  • Working voltage: 12VDC
  • Max current: 450mA
  • Operating mode: normally closed
  • Inlet/Outlet ports: G1/2”
  • Materials: nylon/ stainless steel/Polyoxymethylene
  • Vale type: diaphragm valve (operated by servo)
  • Filter screen: stainless steel inlet filter
  • Max operating temperature: 120°C
  • Operating pressure range: 0.02 – 0.8 MPa
  • Expected life: 200,000+
