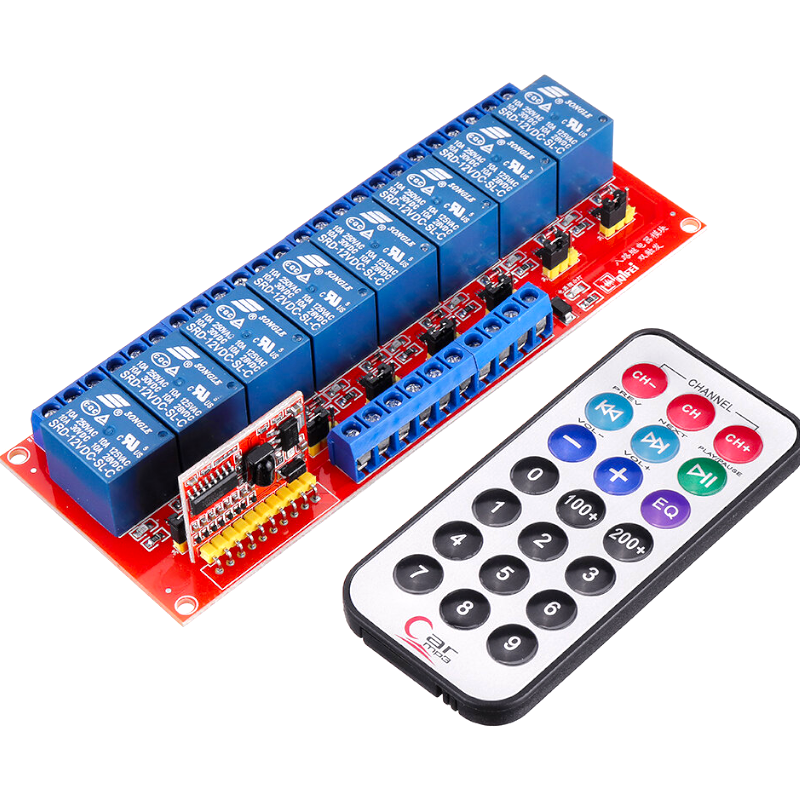

8 Relays with IR Infrared Remote Control

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Dual Trigger design , using special two-way driver IC design , fly away to ride the world premiere of Electronic Science and Technology ;
Anti-interference ability , using the freewheeling diode protection;
Part of the relay contacts using double-sided bold wiring for a large current through the safe and reliable;
5.08mm high-quality input and output terminals are used , the wiring is more convenient and suitable for PLC control
The inputs can be set high and low trigger control more flexible ;
Each relay has a pull indicator , working status of the relay at a glance;
Each relay output leads to a normally open and normally closed two electric shock, use convenient and flexible ;
With fixed screw holes for easy installation ;
Finished by 100% functional testing and stability testing ;

Specification:
The relay contact capacity : AC250V 10A DC30V 10A;
Power supply: Button Battery(Not Included)
Board Size: (L*W*H)13.50*5.00*2.10cm/5.31"*1.97"*0.83"
The remote control Size:(L*W*H)8.50*4.00*0.60cm/3.35"*1.57"*0.24"

Product wiring as follows:
VCC: input power supply terminal end
GND: input power is grounded end
CTR1-CTR8 trigger signal input terminal , in any way effective ( by a jumper setting can)

The remote control uses:
Only the numeric keys work, 1-8 keys,Corresponding to the corresponding relay channels 1-8, after pressed the first time relay start work ,After disconnecting relay pressed again.
After the 0 button is pressed, all start to working,
After the 9 button is pressed, all stop working,

Note:
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package:
1pcs * 8-channel relay module
1pcs * The remote control(Battery Not Included)
