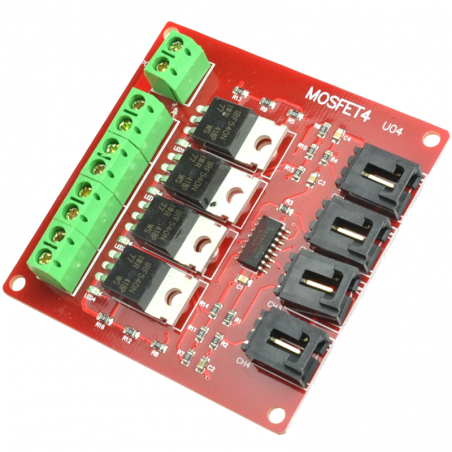

4 Channel MOSFET IRF540 Module for Arduino

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

It is widely used in circuits, such as power supplies switching ,motor drives, lighting dimmer and so on. Relay is another kind of module with switching characteristics. Since relay works relying on mechanical contacts to open or shut. In this way it s will inevitably lead to relay's stopping working while switching time is too short. And the sound made by the relay in some situations is annoying.

We designed a 4-channel MOSFET switch. It can supply up to four groups of electronic switches to control different circuit blocks respectively. Limited by the working priciples, MOSFET can only be used to control the DC circuit, such as DC-LED screen and so on, but not suitable for AC circuit control.

In some extreme cases,It can be used to control 100V/33A DC circuit. However, it is suggested that the controlled DC voltage is more than 9V.

Package Included:

1 x 4CH MOSFET
