16 Channel 5V Relay Module - Arduino compatible

:MRE03012
€19.90
Tax included

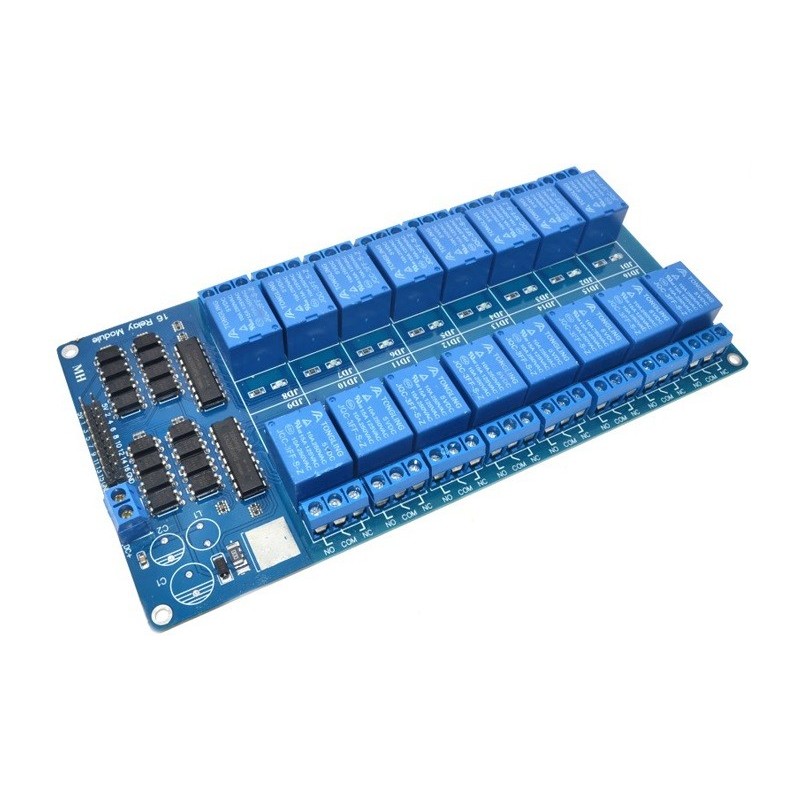

This is a 12V 16-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

SPECIFICATION

  • The use of the industry's top quality optocoupler isolation, strong anti-interference ability, stable performance
  • 5V 16-Channel Relay interface board, and each one needs 15-20mA Driver Current
  • 1-16 road can be any full on / off, or any road.
  • Equiped with high-current relay, AC250V 10A ; DC30V 10A
  • Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  • Indication LED’s for Relay output status
  • Board size:  188x90x20mm

Note: It is possible to use this board with Raspberry Pi and other 3.3V boards, but you will need to provide 5V for the relay coils and remove the 0ohm resistor shown below:

DOCUMENT

Note: The schematic above includes the version board with 12V relays and step-down power supply for 5V. The version we are selling doesn't have the step-down power supply and have 5V coil relays.
