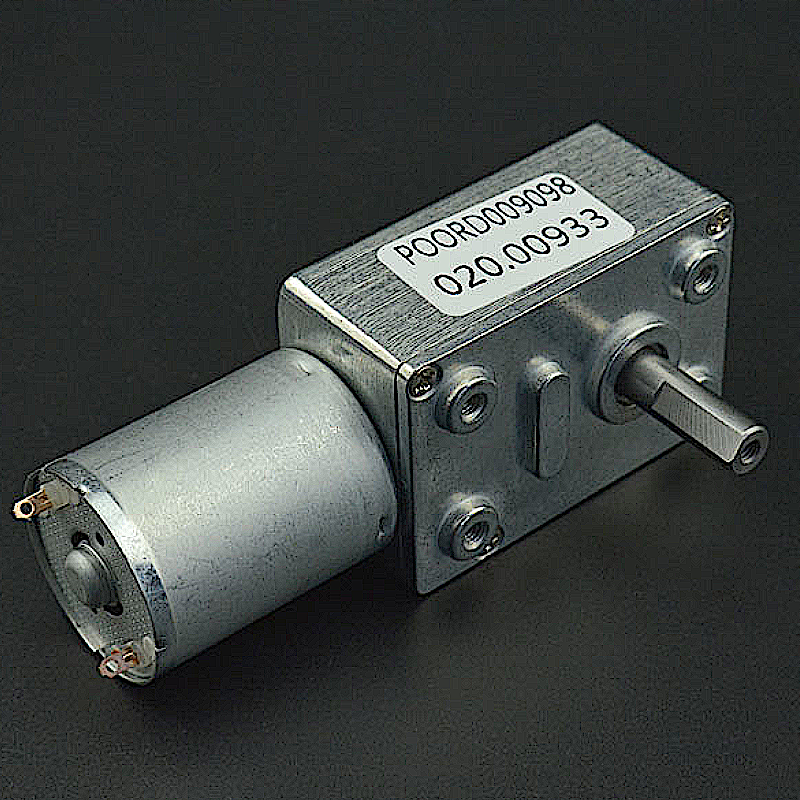

Turbo Metal Gear Worm Motor 12V 40RPM 8kg.cm
The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Max torque: 8Kgf.cm
Nominal voltage: 12Vdc
No load current: 35mA
Nominal current: 180mA
Stall current: 1A
No load RPM: 40rpm
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction
The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
This part uses a two wire connection and supports direction control as well as PWM speed control. Rated voltage is 12v and will achieve 40RPM, with a torque of 8kg/cm.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.
Specification
-
Operating Voltage: 6 - 15 V
-
Rated Voltage: 12V
-
No-load Speed: 40 RPM
-
No-load Current: 35 mA
-
Rated Torque: 32 RPM
-
Rated Current: 180 mA
-
Rated Torque: 2.2 kg.cm
-
Rated Power: 1.1 W
-
Stall Torque: 8 kg/cm
-
Stall Current: 1 A
-
Reduction Ratio: 1:150
-
Weight: 167 g
Shipping List
-
Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
