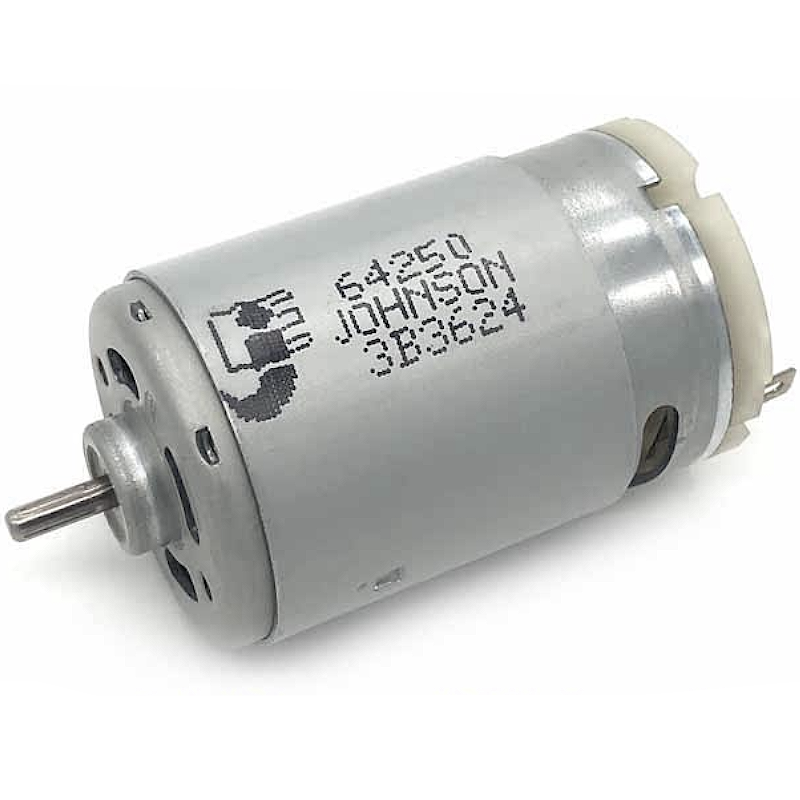

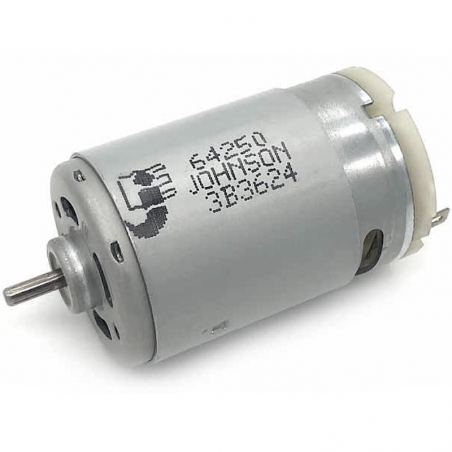

Johnson RS-550 DC Motor (6v~9.6v) 24800rpm

: MOT02085
€9.90
Tax included
  • Rated voltage: DC 12V
  • Voltage range: DC 6-9.6V

  • Motor speed - current:
    • 5v voltage, about 12900 RPM - no-load current 1.4A
    • 6v voltage, about 15500 RPM - no-load current 1.5A
    • 7.4v voltage, about 19200 RPM - no-load current 1.65A
    • 9v voltage, about 23000 RPM - no-load current 1.9A
    • 9.6v voltage, about 24800 RPM - no-load current 2A
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product specifications:

  • Rated voltage: DC 12V
  • Voltage range: DC 6-9.6V
  • Motor speed - current:
    • 5v voltage, about 12900 RPM - no-load current 1.4A
    • 6v voltage, about 15500 RPM - no-load current 1.5A
    • 7.4v voltage, about 19200 RPM - no-load current 1.65A
    • 9v voltage, about 23000 RPM - no-load current 1.9A
    • 9.6v voltage, about 24800 RPM - no-load current 2A
  • Motor length: about 57mm
  • Motor diameter: about 37mm
  • Motor shaft diameter: 3.17mm
  • Motor shaft length: about 9mm



MOT02085
