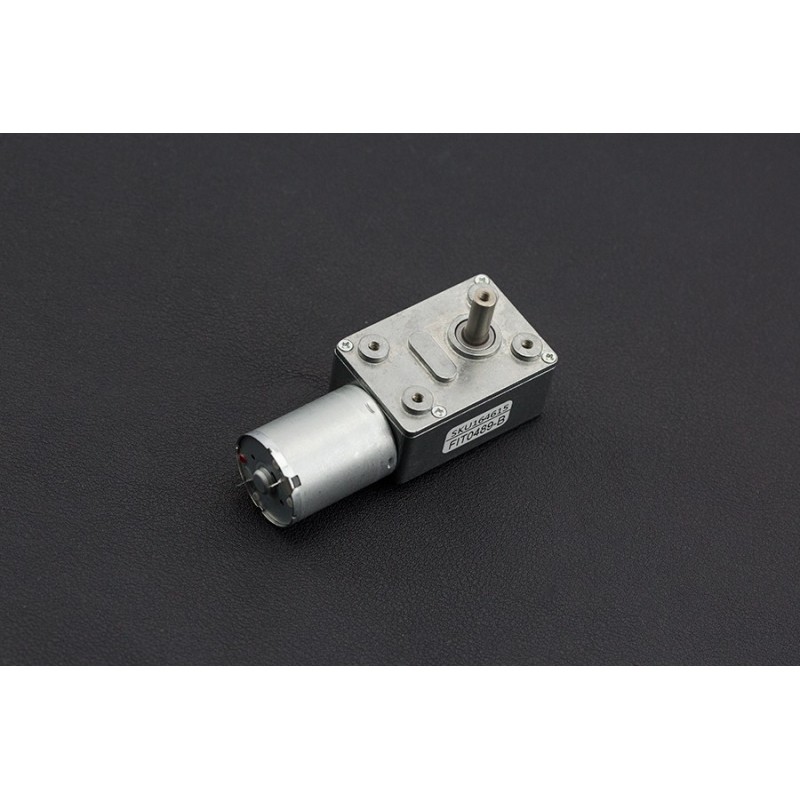

Motor DC com caixa Redutora a 90º (6V 40RPM 10kg/cm)

INTRODUCTION

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.

This part uses a two wire connection and supports direction control as well as PWM speed control. Rated voltage is 6v and will achieve 40RPM, with a torque of 10kg/cm.

Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

SPECIFICATION

• Operating Voltage: 3 - 9 V
• Rated Voltage: 6V
• No-load Speed: 40 RPM
• No-load Current: 40 mA
• Rated Torque: 32 RPM
• Rated Current: 250 mA
• Rated Torque: 2.5 kg.cm
• Rated Power: 1.3 W
• Stall Torque: 10 kg/cm
• Stall Current: 1.7 A
• Reduction Ratio: 1:150
• Weight: 160 g

SHIPPING LIST

• Metal Turbo Worm Gear Motor (6V 40RPM 10kg.cm) x1
