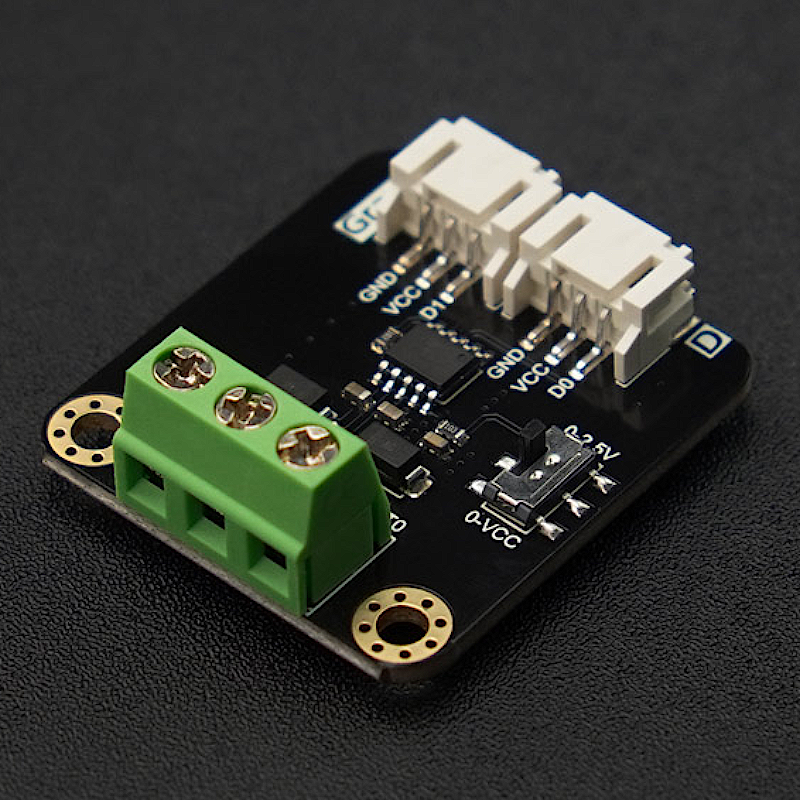

Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module - DFRobot DFR1037

This is a 2-channel analog voltage output DAC module with PWM communication, 8-bit resolution, and 0.5% precision. It is well-suited for control projects operating within the 3.3V range, such as ESP32, Raspberry Pi, STM32, and other microcontrollers that require analog signal output.

PWM signal drive allows the module to be controlled by MCU digital ports, providing a simple and convenient usage. The design with two channels also enables effective cost reduction for the project.

DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges, but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output.

Functional Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module

Wiring Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module and Arduino UNO

Selection Guide of DAC Modules

1. Support 3.3-V-5V power supply.

2. Output voltage error is less than 0.5%.

3. Output voltage linearity error is 0.1%.

4. Two channels of voltage output, either 0-2.5V or 0-VCC, enabling connection and control of standard analog voltage devices.

5. Gravity interface, PWM communication, Arduino control, suitable for program automation control.

6. PWM signals can be utilized to drive the module, enabling it to be controlled simply by the digital port of the MCU.

1. Motor speed control

2. Sound volume control

3. Indoor and outdoor lighting brightness adjustment

4. Display screen backlight automatic adjustment

1. Operating voltage: 3.3V to 5V

2. Communication Method: PWM

3. Chip Type: GP8501

4. Resolution: 8-bit

5. Output Voltage: 0-2.5V or 0-VCC

6. Number of channels: 2 channels

7. Value Range: 0 - 255 corresponding to 0-2.5V or 0-VCC

8. Output voltage: 0.5%

9. Output voltage linearity error: 0.1%

1. Product wiki

1. GP8501: 2-Channel PWM to 0-2.5V/VCC DAC Module ×1

2. Gravity-3Pin Analog Sensor Cable ×1
