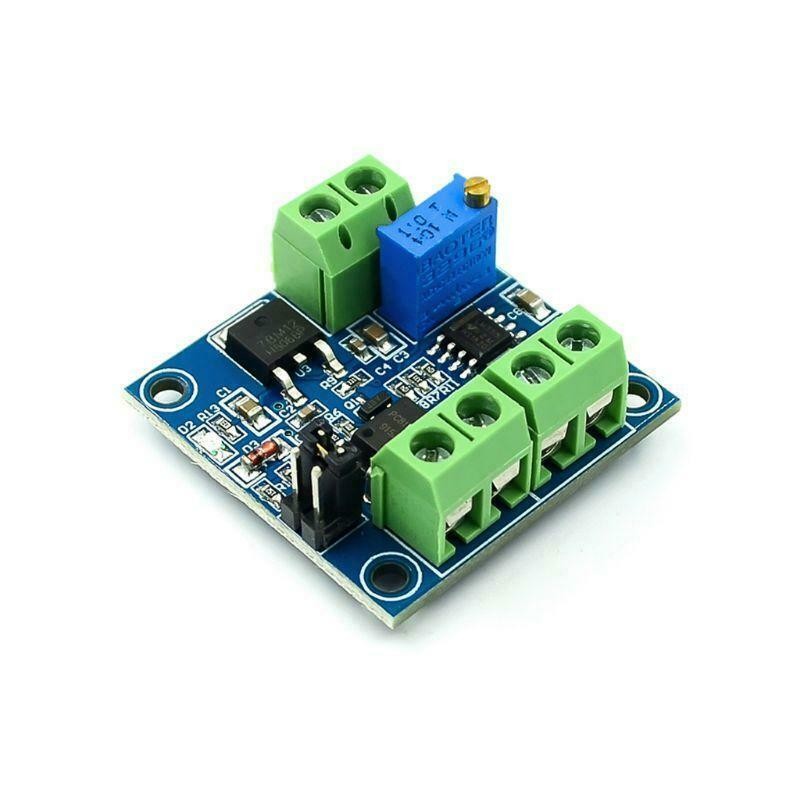

PWM to Voltage Converter Module 0%~100% to 0~10V

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

It is designed for converting the PWM digital signals into 0 to 10V analog signals.
The output voltage is regulated by adjusting the duty ratio of the PWM.
Select the PWM signal input level range through short-circuit.
It can be used as signal interface switching for PLC or other industrial control boards.
MCU embedded technology, easy to operate, fine tuned by potentiometer.
Small size and compact, easy to carry and use.
Module only, other accessories demo in the picture is not included.

Specification:

Material: Circuit Board, Electronic Components
Size: app.3.3 x 3.3cm/1.3 x 1.3in
Color: Blue
Quantity: 1 Pc

Product Parameter:

Work Voltage: DC 12V-30V (> 100MA)
PWM Receiver Frequency: 1KHZ-3KHZ
PWM Signal Input level range:

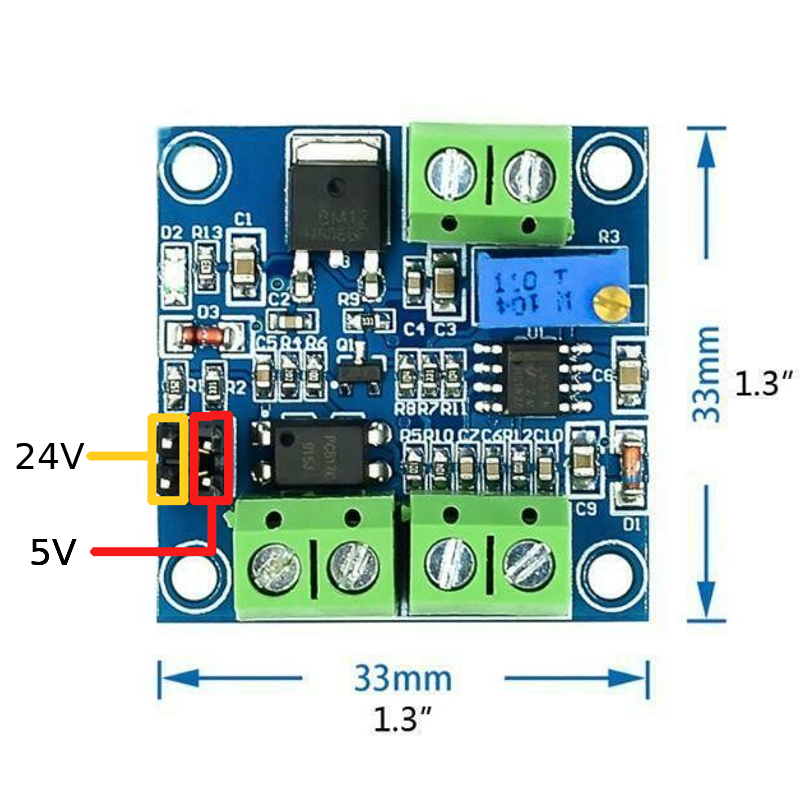

The peak of 4.5V to 10V level. The short cap install in "5V". This level is used for normal controller or 5V MCU
The peak of 12V to 24V level, so inserted in 24V. The short cap install in ‘24V’. This level is used for normal PLC controller
Conversion Range: 0%-100% PWM to 0-10V
Allowable Error: 5%

Package includes:

1 x PWM to Voltage Converter Module
