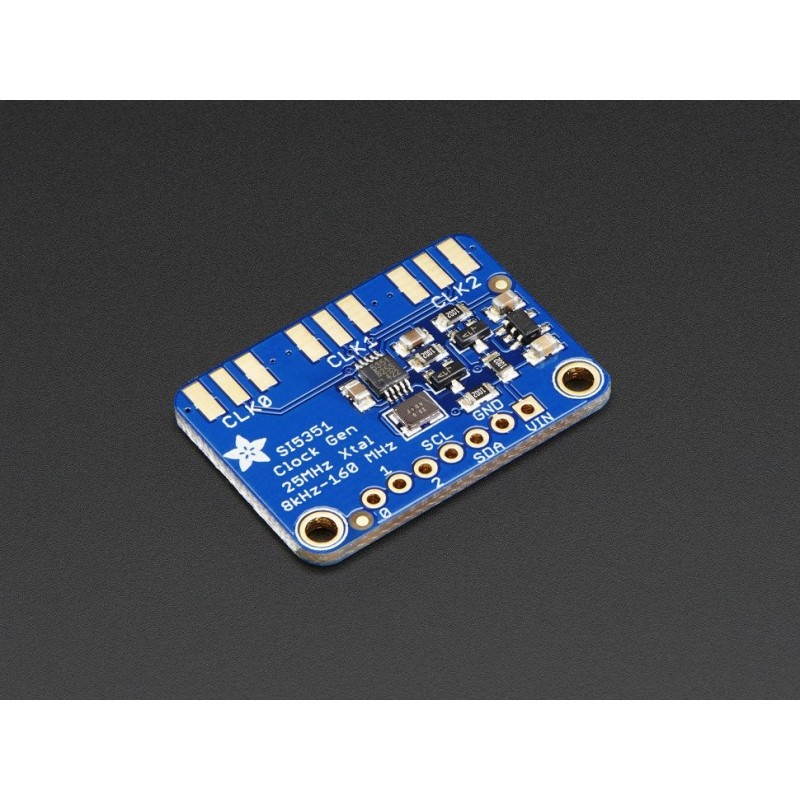

Adafruit Si5351A Clock Generator Breakout Board - 8KHz to 160MHz
: ARD01034
€11.80
Tax included
The frequency generator (clock) Si5351A is a square wave generator - 8kHz to 160MHz via I2C. It uses the onbordo precision clock to drive multiple PLL and clock dividers using I2C instructions. When configuring the PLL dividers and you can create accurate and arbitrary frequencies. There are three independent outputs, and each may have a different frequency.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
-
DESCRIPTION
Never hunt around for another crystal again, with the Si5351A clock generator breakout from Adafruit! This chip has a precision 25MHz crystal reference and internal PLL and dividers so it can generate just about any frequency, from <8KHz up to 150+ MHz.
Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.
We put this handy little chip onto it's own breakout board PCB, with a 3.3V LDO regulator so it can be powered from 3-5VDC. We also put level shifting circuitry on the I2C lines so you can use this chip safely with 3V or 5V logic.
-
TECHNICAL DETAILS
- Dimensions: 31mm x 22mm x 2mm / 1.22" x .87" x .08"
- Weight: 2.5 grams
- Datasheet
ARD01034
The frequency generator (clock) Si5351A is a square wave generator - 8kHz to 160MHz via I2C. It uses the onbordo precision clock to drive multiple PLL and clock dividers using I2C instructions. When configuring the PLL dividers and you can create accurate and arbitrary frequencies. There are three independent outputs, and each may have a different frequency.
