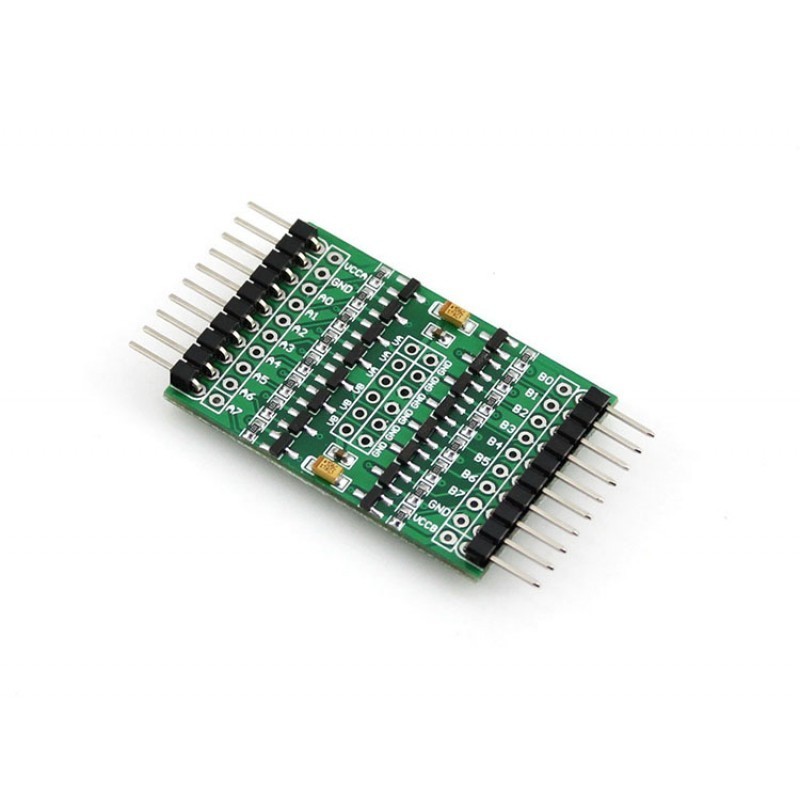

Logic Level Converter
: CEL12000
€3.50
Tax included
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Features
- 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
- 4 pairs of power supply interfaces, supports more situations
- Use tantalum capacitors for power filter, provides more stability
- Voltage level: 1.8V-6V
- Dimension: 31.6mm x 25.4mm
How to Use
In the case of translating between 3.3V and 5V system:
- VCCA/VA connects to 3.3V power supply
- VCCB/VB connects to 5V power supply
- GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
- When Ax has TTL 3.3V input, Bx will get TTL 5V output
- When Bx has TTL 5V input, Ax will get TTL 3.3V output
- NO direction control required
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
