Raspberry Pi Pico 2 W - SC1633

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The Raspberry Pi Pico 2 W is a wireless version of the Raspberry Pi Pico 2, offering 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 on top of the usual great features you know and love from the Pico 2, now available with or without headers pre-soldered.

At the heart of the board is the Raspberry Pi RP2350, Raspberry Pi's high-performance, secure microcontroller chip, successor to the popular RP2040 microcontroller first seen on the original Raspberry Pi Pico.

Compared to the original Raspberry Pi Pico, the RP2350-based Raspberry Pi Pico 2 W offers a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, more powerful Arm cores, optional RISC-V cores, new security features, and upgraded interfacing capabilities!

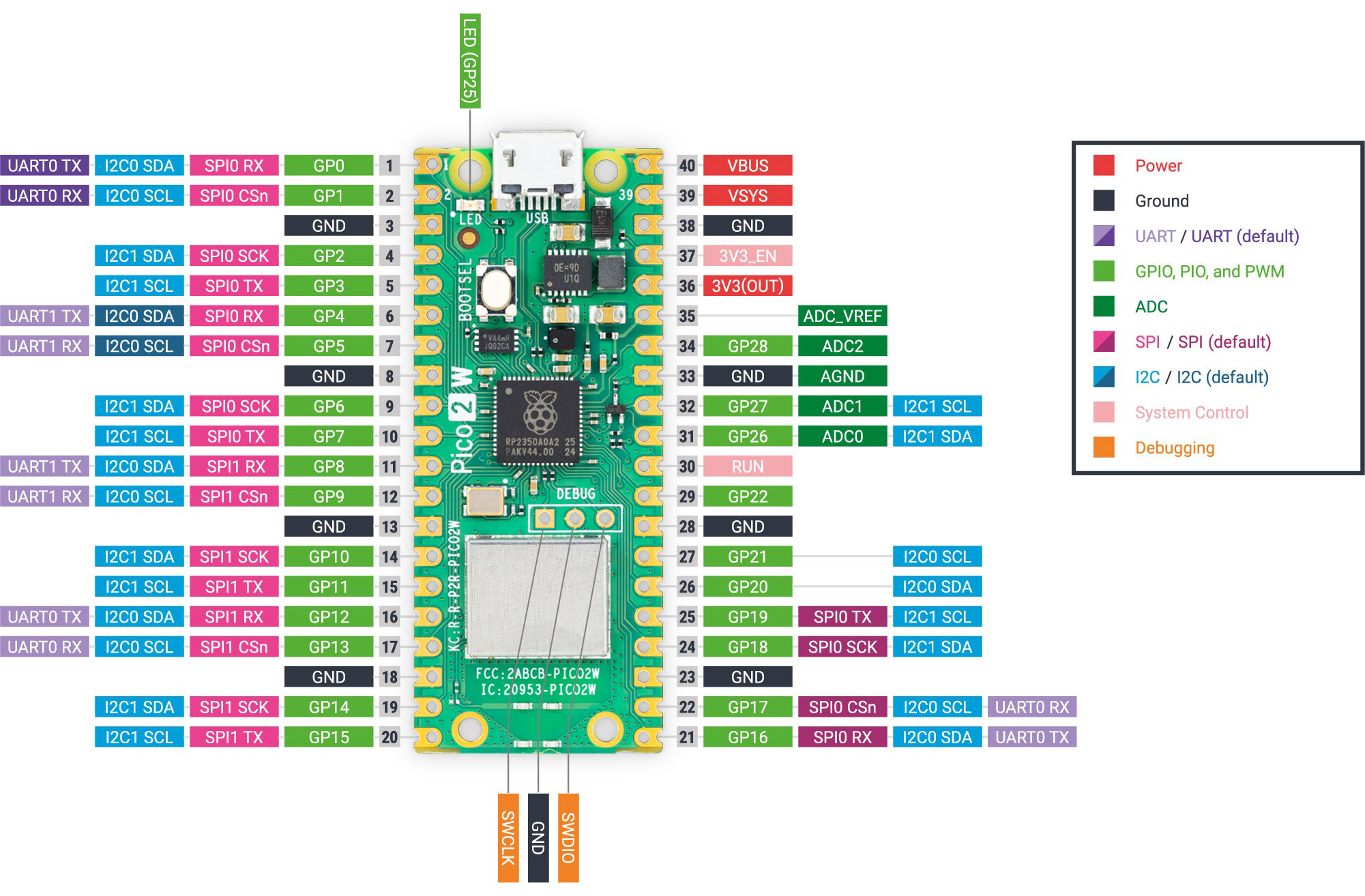

These significant performance and feature improvements are delivered with the same form factor and are software-compatible with the original Raspberry Pi Pico series boards, with the same GPIO pinout and micro-USB connector for power and programming, allowing you to easily upgrade your projects and re-use your collection of Raspberry Pi Pico add-ons, cables and accessories.

Programmable in C / C++ and Python, and with detailed documentation, Raspberry Pi Pico 2 W is the ideal microcontroller board for enthusiasts and professional developers alike.

Specification

Dual Arm Cortex-M33 or dual Hazard3 RISC-V processors @ 150MHz

520 KB on-chip SRAM

2.4GHz 802.11n wireless LAN and Bluetooth 5.2 (Raspberry Pi Pico 2 W only)

Software- and hardware-compatible with Raspberry Pi Pico 1

Drag-and-drop programming using mass storage over USB

Castellated module allows soldering direct to carrier boards

Robust and fully documented security features:

• ARM TrustZone for Cortex-M

• Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP

• Protected OTP storage for optional boot decryption key

• Global bus filtering based on Arm or RISC-V security/privilege levels

• Peripherals, GPIOs, and DMA channels individually assignable to security domains

• Hardware mitigations for fault injection attacks

• Hardware SHA-256 accelerator

2 × UART

2 × SPI controllers

2 × I2C controllers

24 × PWM channels

3 x ADC channels

1 × USB 1.1 controller and PHY, with host and device support

12 × PIO state machines

Open source C/C++ SDK, MicroPython support

Operating temperature -20°C to +85°C

Supported input voltage 1.8–5.5V DC

Documents:

1. Raspberry Pi Pico 2 series - Product Brief (PDF)

2. Raspberry Pi Pico 2 MicroPython SDK

3. Raspberry Pi Pico 2 C/C++ SDK
